Fire Sleeve

Product Descriptions

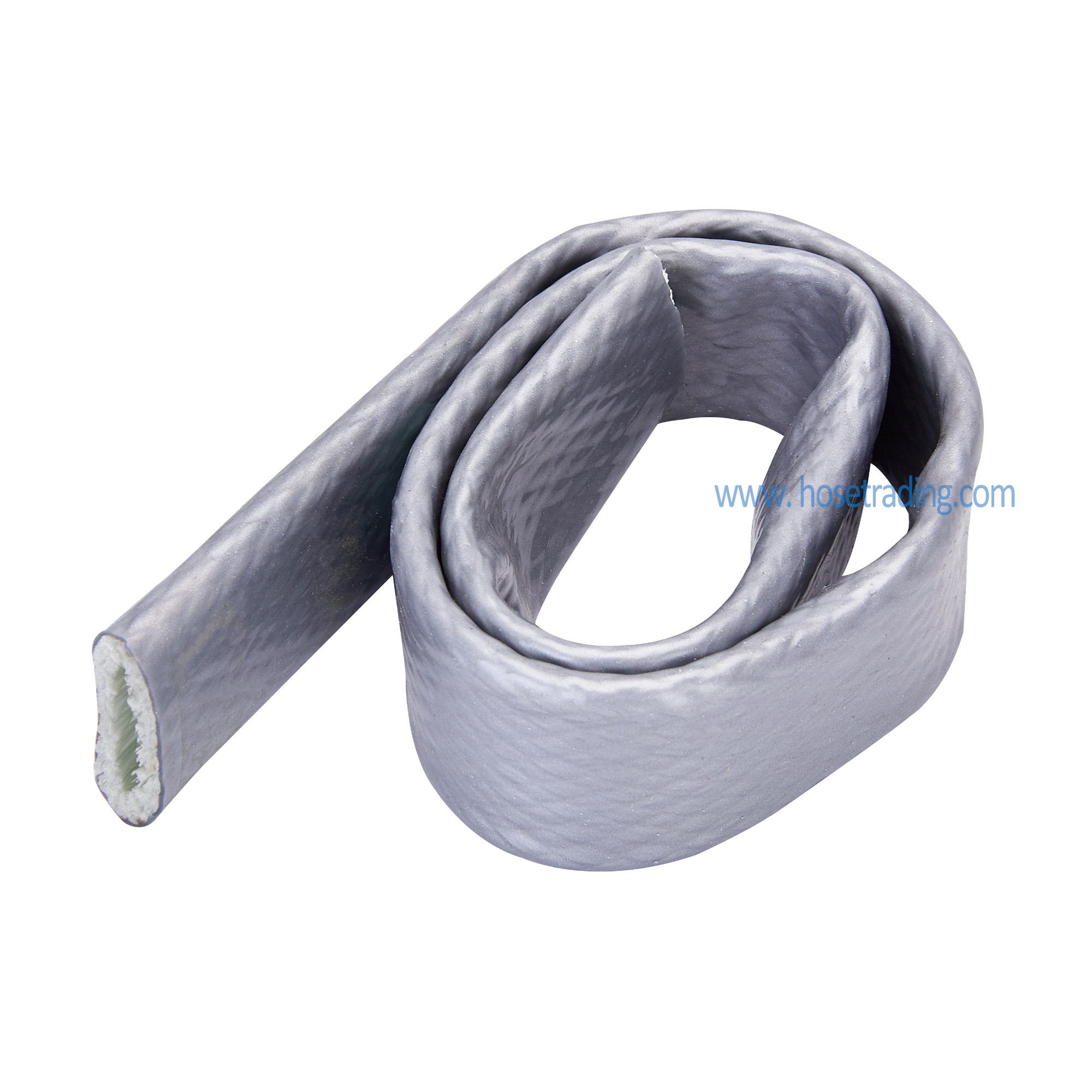

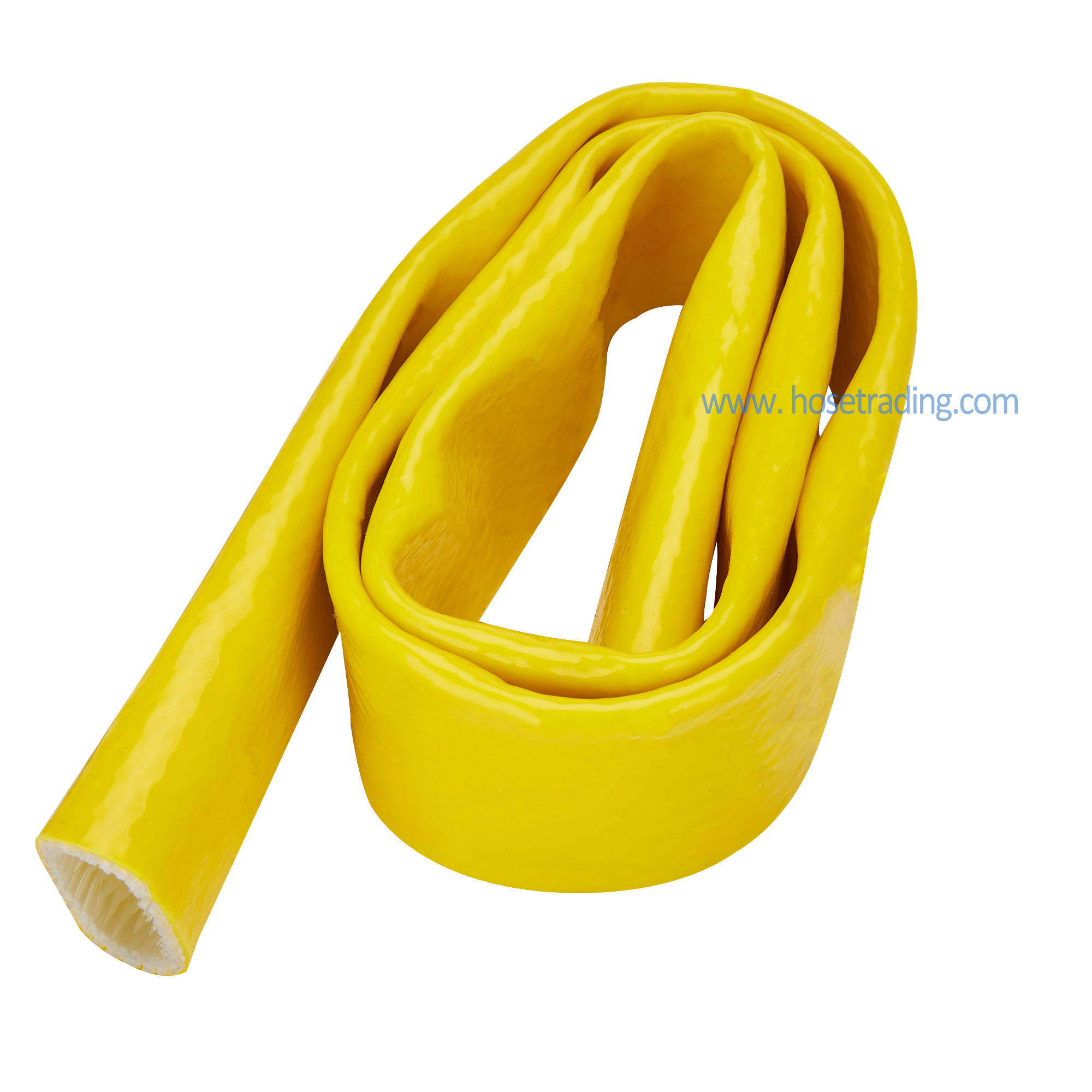

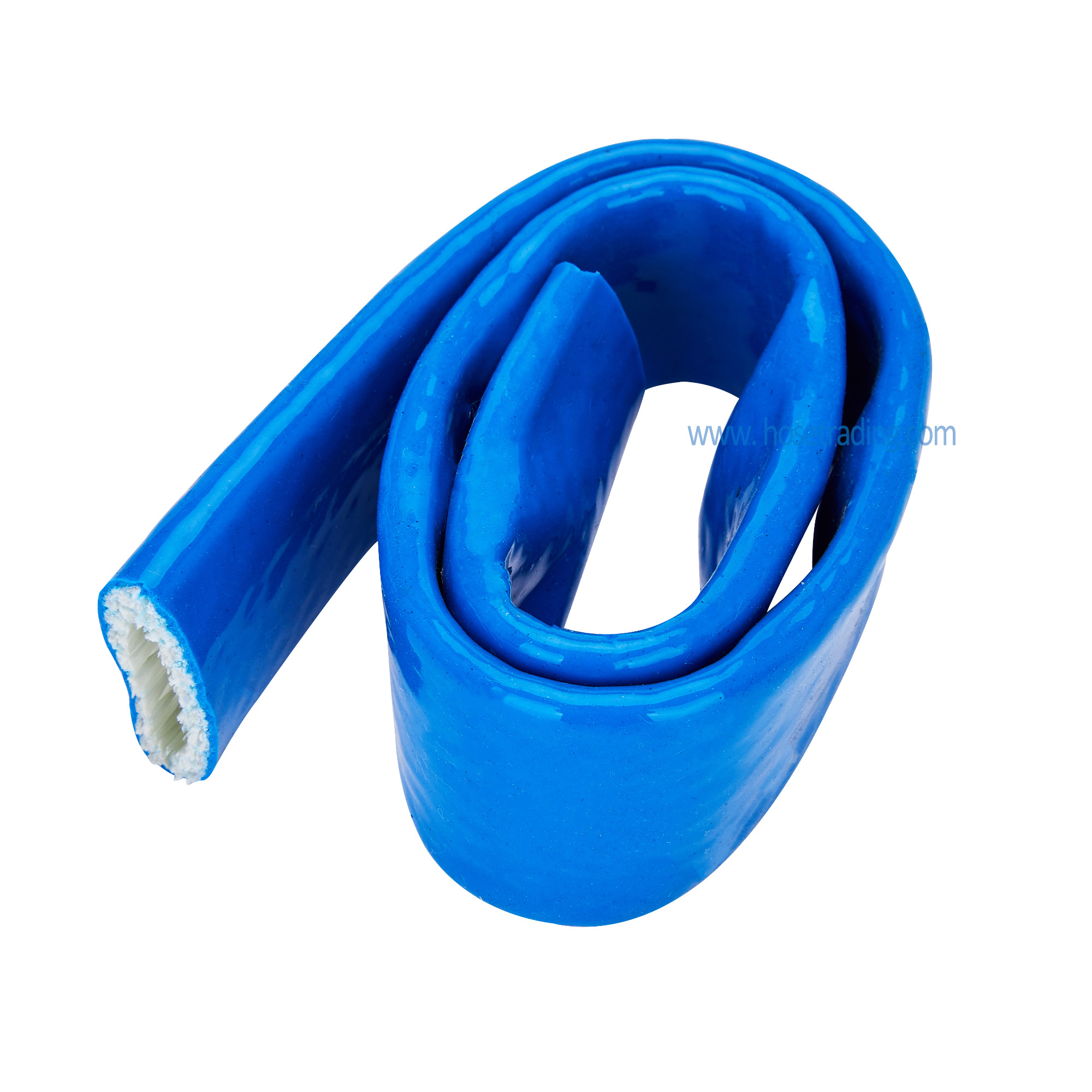

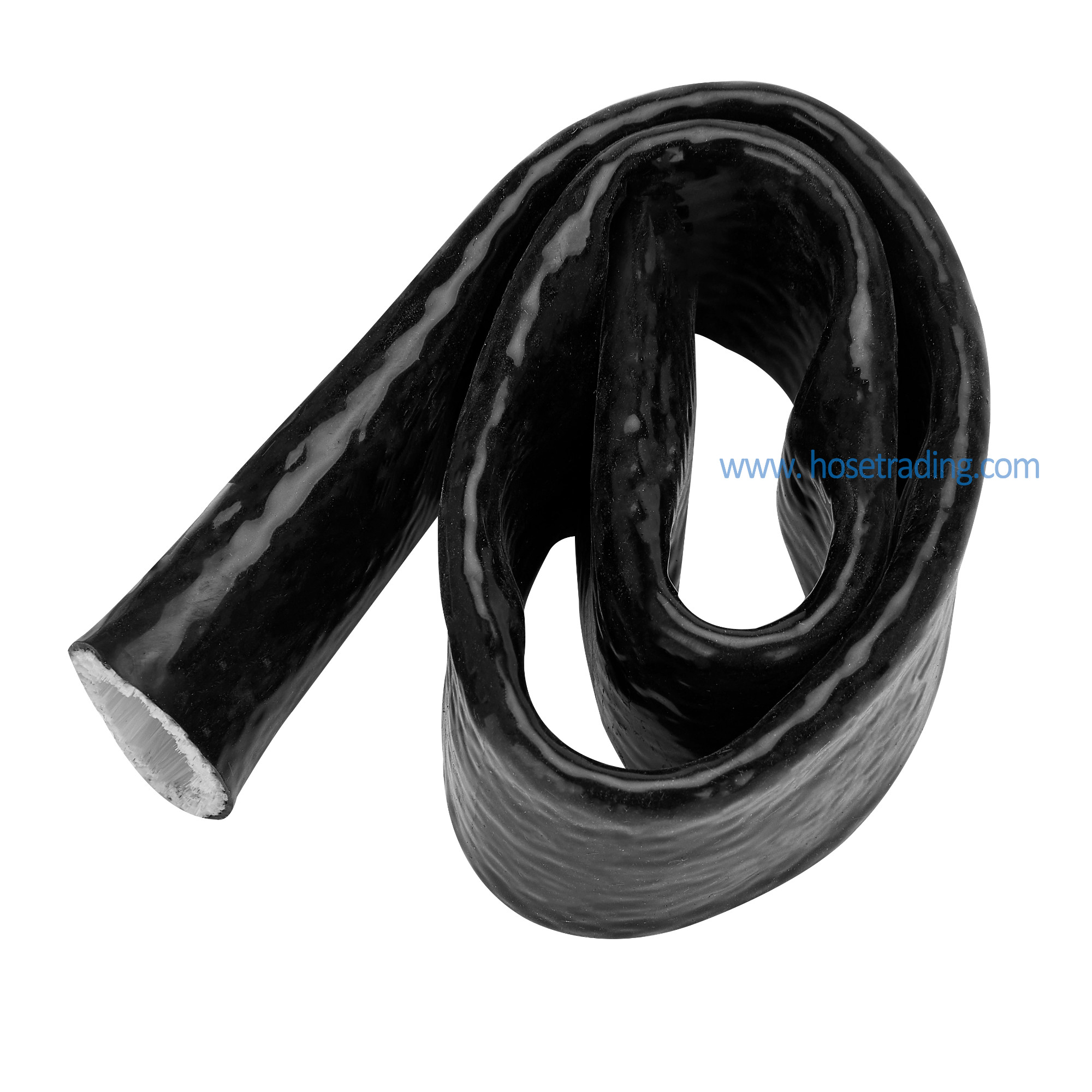

Fire Sleeve is a flame resistant sheath that protects the hose from extreme temperature conditions. The Fire Sleeve easily slides over hoses and readily expands over fittings. It can be secured in place with hose clamp.
Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Flame resistant to protect from extreme temperature situations

For use with clamp to keep sleeve in place

Oil and Fluid Resistance: Impervious to most liquids including those with a

hydrocarbon base

Applications:

For use in high temperature applications.

Specifications:

Braided fiberglass sleeve and an orange, bonded and seamless silicone rubber

cover

Temperature range:

-54°C -260°C Continous Exposure

1000°C 20 Minutes

1600°C 30 Seconds

Item Number	Inner Diameter	Wall Thickness	Roll Length
HGFS	mm	mm	m
HGFS06	6	1.5	20
HGFS08	8	1.6	20
HGFS10	10	1.8	20
HGFS12	12	1.9	20
HGFS15	15	2.1	20
HGFS20	20	2.4	20
HGFS22	22	2.5	20
HGFS25	25	2.6	20
HGFS30	30	2.9	20
HGFS32	32	3.0	20
HGFS35	35	3.1	20
HGFS38	38	3.2	20
HGFS40	40	3.4	20
HGFS45	45	3.4	20
HGFS50	50	3.6	20
HGFS55	55	3.7	20
HGFS60	60	3.8	20
HGFS65	65	3.8	20
HGFS70	70	4.0	20
HGFS75	75	4.1	20
HGFS80	80	4.3	15
HGFS85	85	4.3	15
HGFS90	90	4.5	15
HGFS95	95	4.5	15
HGFS100	100	4.6	15
HGFS105	105	4.7	10
HGFS110	110	4.7	10
HGFS115	115	4.7	10
HGFS120	120	4.8	10
HGFS125	125	4.8	10
HGFS130	130	5.0	10
HGFS140	140	5.2	10
HGFS150	150	5.2	10
