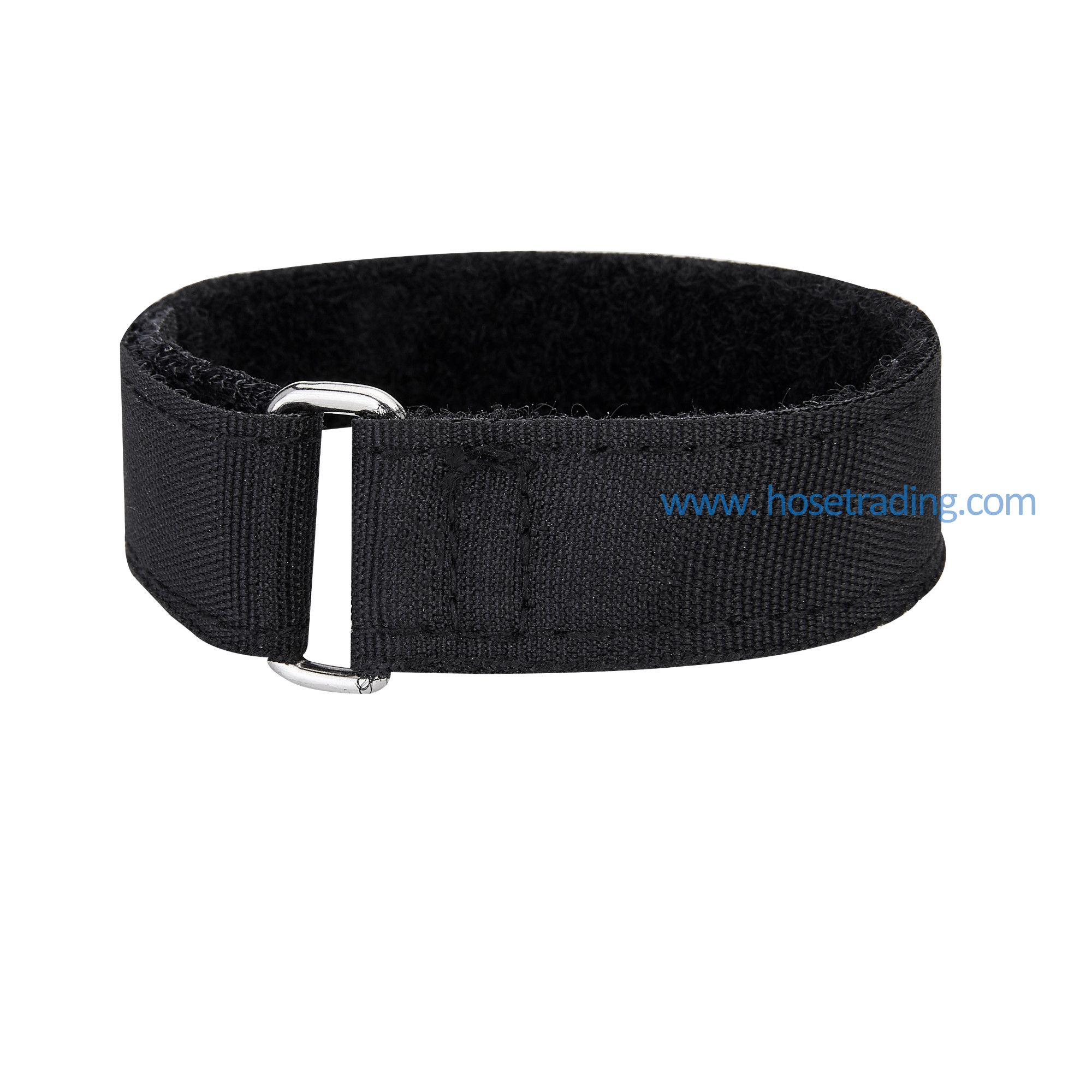

Heavy Duty Hanging Strap

Product Descriptions

Heavy Duty Hanging Straps are made out of Double-backed Nylon, with Nickel-plated buckle and Nickel-plated brass grommet making for a durable and reliable product. They are ideal for vertical or horizontal mounting. Unlike cable ties, these straps allow hose and tubes to expand and contract in changing conditions and can be used again and again with no loss of strength.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features&Benefits:

Grommet supports bundle during assembly & provides fast, easy access without

the need for tools

Allows for natural hose expansion & contraction

Usable, tear resistant & unimpacted by extreme environments

Applications:

For hoses and wire bundling

Specifications:

Material: Nylon, Polymide, Brass

Maximum operating temperature +79°C

Item Number	Max Circumference	Max Circumference	Grommet Size
CHDHS	inch	mm	inch
CHDHS102	4	102	7/16
CHDHS152	6	152	7/16
CHDHS203	8	203	7/16
CHDHS254	10	254	7/16
CHDHS304	12	304	7/16
CHDHS406	16	406	7/16
CHDHS508	20	508	7/16
CHDHS609	24	609	7/16
CHDHS660	26	660	7/16
CHDHS762	30	762	7/16
CHDHS914	36	914	7/16
CHDHS1016	40	1016	7/16
