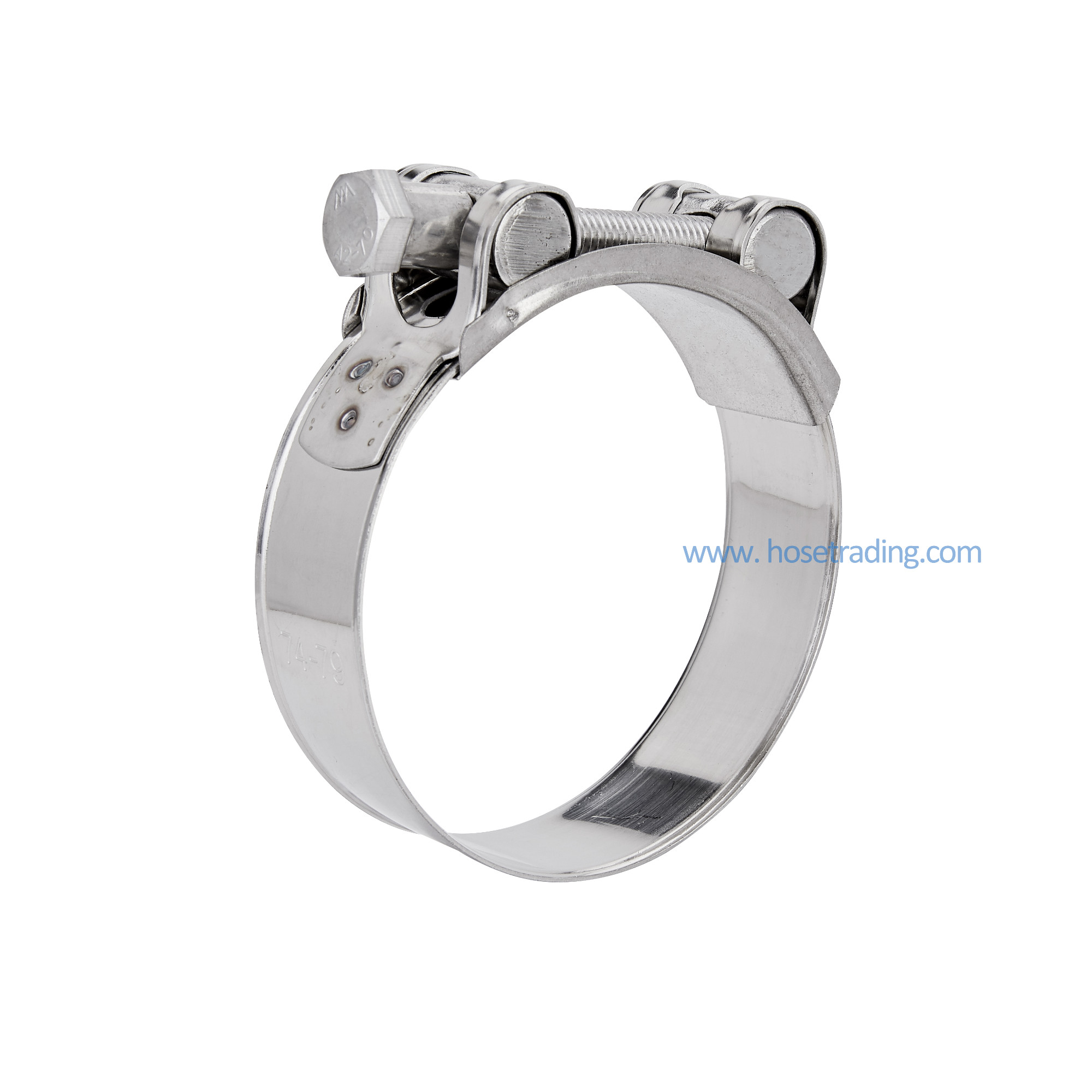

European Style T Bolt Clamp

Product Descriptions

T-Bolt Clamp is a clamp equipped with a t-bolt which can be tightened by a hex-nut. It features stainless steel housings and bands along with zinc-plated screws for maximum durability. And it creates a secure seal on the hose, making them common in heavy-duty applications like heavy machinery, industrial manufacturing and farm equipment.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Heavy duty T-bolt with locknut creates a leak-proof seal on high pressure hoses

Stainless steel construction resists corrosion

Ideal for automotive, marine and industrial applications

Applications:

For secure clamping applications

For use with high pressure industrial hose applications

Specifications:

Material: Stainless Steel

Band Width: 18mm, 20mm, 22mm, 24mm, 26mm

Thickness: 0.6mm, 0.8mm, 1.0mm

European Style T Bolt Clamp

Item Number	Band Width	Band Thickness	Clamping Range	Bolt Size
CESTBC	mm	mm	mm
CESTBC17	18	0.6	17-19	M540*
CESTBC19	18	0.6	19-21	M540*
CESTBC20	18	0.6	20-22	M540*
CESTBC21	18	0.6	21-23	M540*
CESTBC23	18	0.6	23-25	M540*
CESTBC26	18	0.6	26-28	M540*
CESTBC29	20	0.6	29-31	M540*
CESTBC32	20	0.6	32-35	M650*
CESTBC36	20	0.6	36-39	M650*
CESTBC38	20	0.6	38-41	M650*
CESTBC40	20	0.6	40-43	M650*
CESTBC43	20	0.6	43-46	M650*
CESTBC44	20	0.8	44-47	M655*
CESTBC48	22	0.8	48-51	M655*
CESTBC52	22	0.8	52-55	M655*
CESTBC56	22	0.8	56-59	M655*
CESTBC60	22	0.8	60-63	M655*
CESTBC64	22	0.8	64-67	M870*
CESTBC68	24	0.8	68-73	M870*
CESTBC74	24	0.8	74-79	M870*
CESTBC76	24	0.8	76-80	M870*
CESTBC80	24	0.8	80-85	M870*
CESTBC86	24	0.8	86-91	M870*
CESTBC92	24	0.8	92-97	M870*
CESTBC98	24	0.8	98-103	M870*
CESTBC104	24	0.8	104-112	M880*
CESTBC113	24	0.8	113-121	M880*
CESTBC122	24	0.8	122-130	M880*
CESTBC131	26	1.0	131-139	M1090*
CESTBC140	26	1.0	140-148	M1090*
CESTBC149	26	1.0	149-161	M10110*
CESTBC162	26	1.0	162-174	M10110*
CESTBC175	26	1.0	175-187	M10110*
CESTBC188	26	1.0	188-200	M10110*
CESTBC201	26	1.0	201-213	M10110*
CESTBC214	26	1.0	214-226	M10110*
CESTBC227	26	1.0	227-239	M10110*
CESTBC240	26	1.0	240-252	M10110*
