Nylon Sleeve MSHA

Product Descriptions

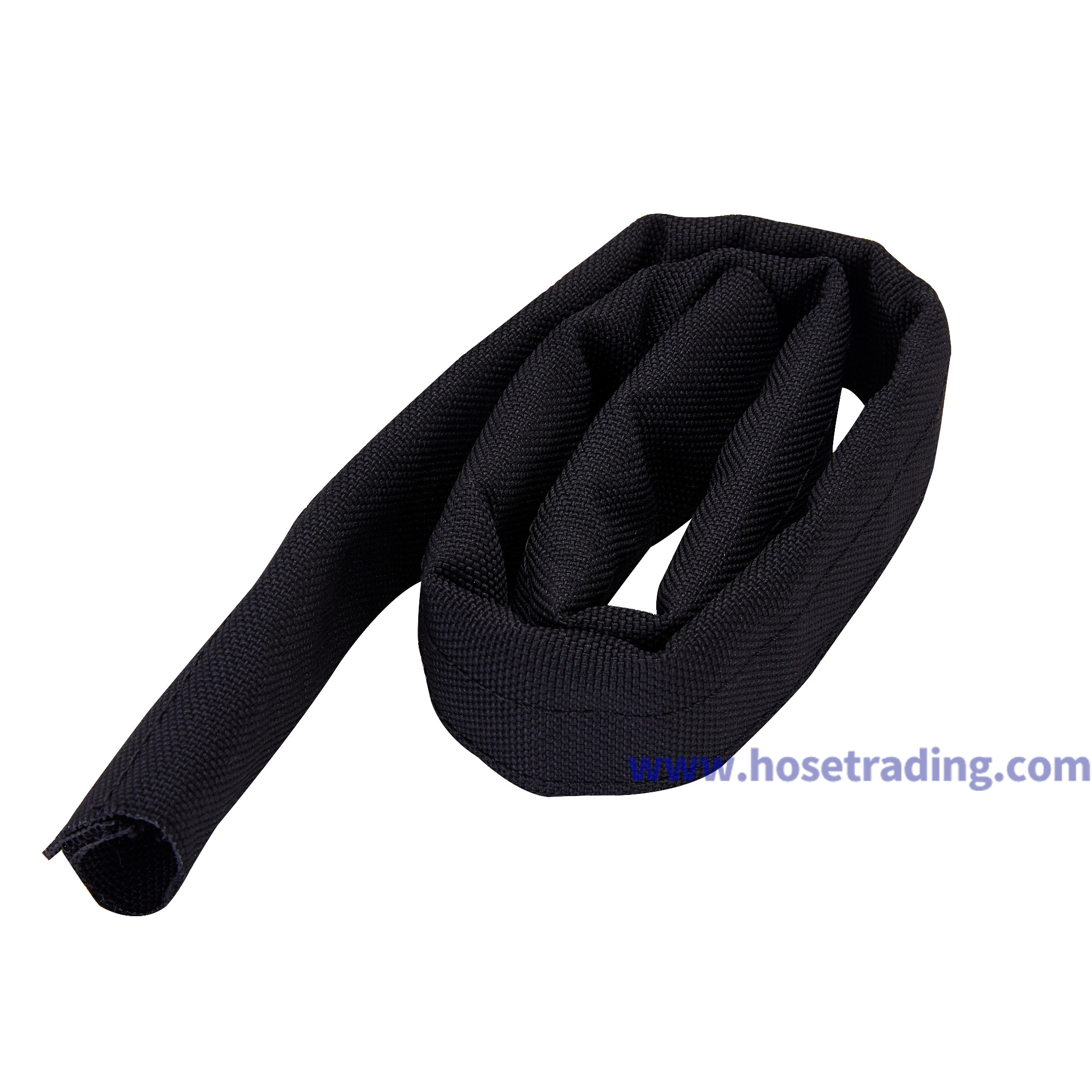

Nylon Sleeve is a lightweight, highly flexible designed product for added abrasion resistance and bundling multiple hoses or cables after assembly. It is also used to protect cylinder rods from damage or contamination. Nylon Sleeve comes on a 50 meter roll and can be cut to size with household scissors. It is available in circumference sizes 20-200mm but other sizes will be available upon request with a minimum order.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Post assembly installation

Lightweight and highly flexible

Fast and easy installation

Tight weave pattern prevents the fabric ends from fraying out when cut

Applications:

Harsh abrasive applications with aggressive chemicals or rugged environments

Specifications:

Temperature Range: -60°C-125°C

Material: Nylon PA66

Certifications:

UL94V0 Compliant

BS6853 Certified for English Rail fire precaution

DIN5510 Certified for German Rail fire precaution

MSHA certified for use in underground mines

RoHS Compliant

ISO6945 certified for abrasion resistance of outer cover

Item Number	Flat Width	Inner Diameter	Thickness of inner wall	Coil Length
HGNS	mm	mm	mm	m
HGNS020	20	12	1.0	50
HGNS025	25	15	1.0	50
HGNS030	30	18	1.0	50
HGNS035	35	21	1.0	50
HGNS040	40	24	1.0	50
HGNS045	45	28	1.0	50
HGNS050	50	31	1.0	50
HGNS060	60	37	1.0	50
HGNS070	70	44	1.0	50
HGNS080	80	50	1.0	50
HGNS090	90	56	1.0	50
HGNS100	100	62	1.0	50
HGNS115	115	72	1.0	50
HGNS145	145	90	1.0	50
HGNS176	176	110	1.0	50
HGNS200	200	125	1.0	50
