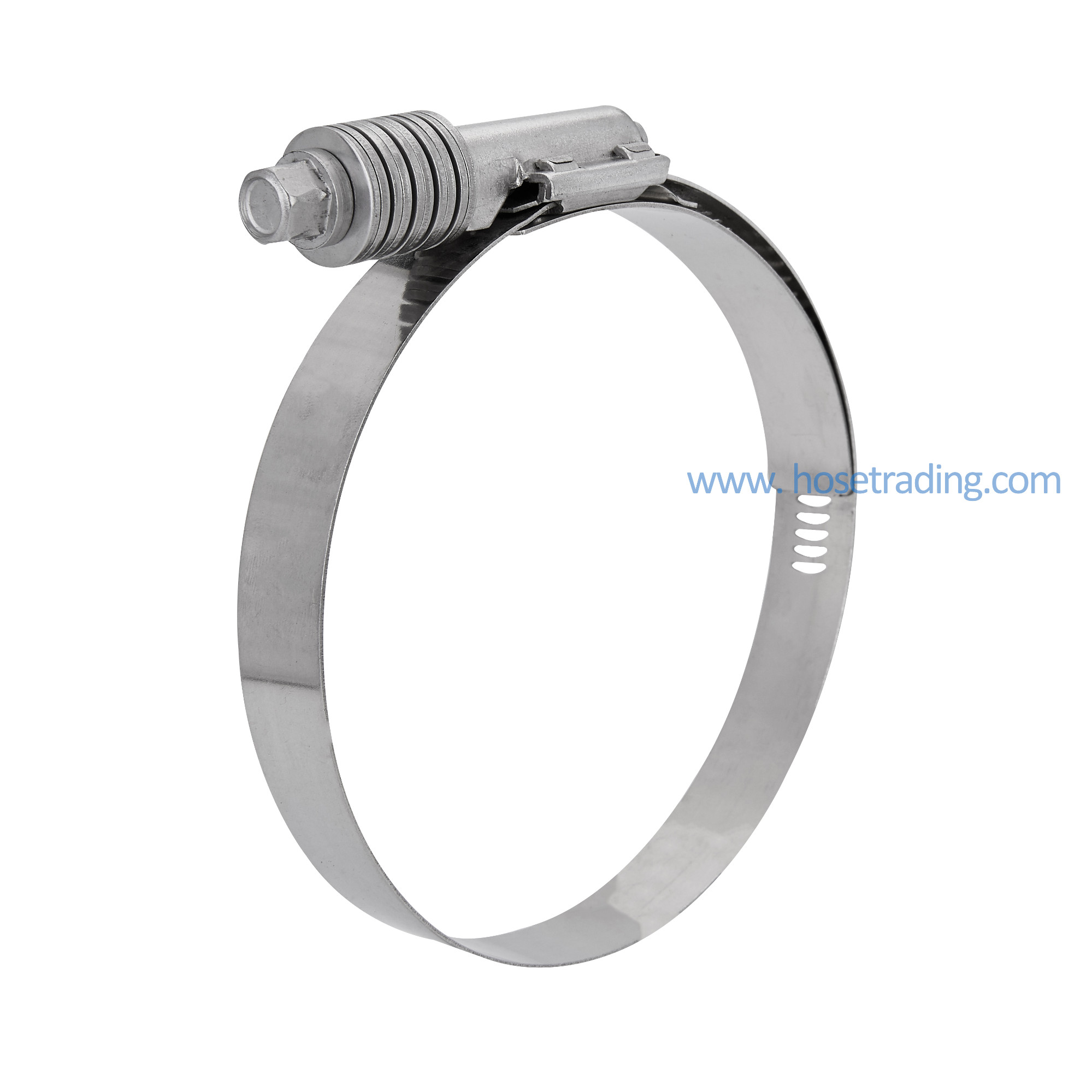

Constant Torque Hose Clamp

Product Descriptions

Constant Torque Hose Clamp features a series of special washers that allow the clamp diameter to expand and contract slightly with changes in pressure.This means the hose clamp maintains a constant torque on the hose and a nice, tight seal, even during pressure cycles. It’s an excellent choice for fluctuating and extreme temperature applications and thermal compensation.
Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Easily adjust the diameter of the clamp for a snug fit on a variety of hose sizes

Specially designed with an extended tail attached to the band to prevent soft hoses or tubes from being cut

Stop leaks from occurring and stay in place after application

Applications:

For secure clamping applications

For use with high pressure industrial hose applications

Specifications:

Band Width: 5/8 inchd(15.80mm)

Housing: 304 Stainless steel

Bridge: 410 Stainless steel

Hex screw: 410 Stainless steel

Item Number	Clamping Range	Clamp Size	Band Width	Screw Size
CCTHC	mm	inch	inch	inch
CCTHC25	25-44	1 3/4	5/8	3/8
CCTHC32	32-54	2 1/8	5/8	3/8
CCTHC45	45-67	2 5/8	5/8	3/8
CCTHC58	58-80	3 1/8	5/8	3/8
CCTHC70	70-92	3 5/8	5/8	3/8
CCTHC83	83-105	4 1/8	5/8	3/8
CCTHC96	96-118	4 5/8	5/8	3/8
CCTHC108	108-130	5 1/8	5/8	3/8
CCTHC121	121-143	5 5/8	5/8	3/8
CCTHC134	134-156	6 1/8	5/8	3/8
CCTHC146	146-168	6 5/8	5/8	3/8
CCTHC159	159-181	7 1/8	5/8	3/8
CCTHC172	172-194	7 5/8	5/8	3/8
CCTHC184	184-206	8 1/8	5/8	3/8
CCTHC197	197-219	8 5/8	5/8	3/8
CCTHC210	210-232	9 1/8	5/8	3/8
