Product Descriptions

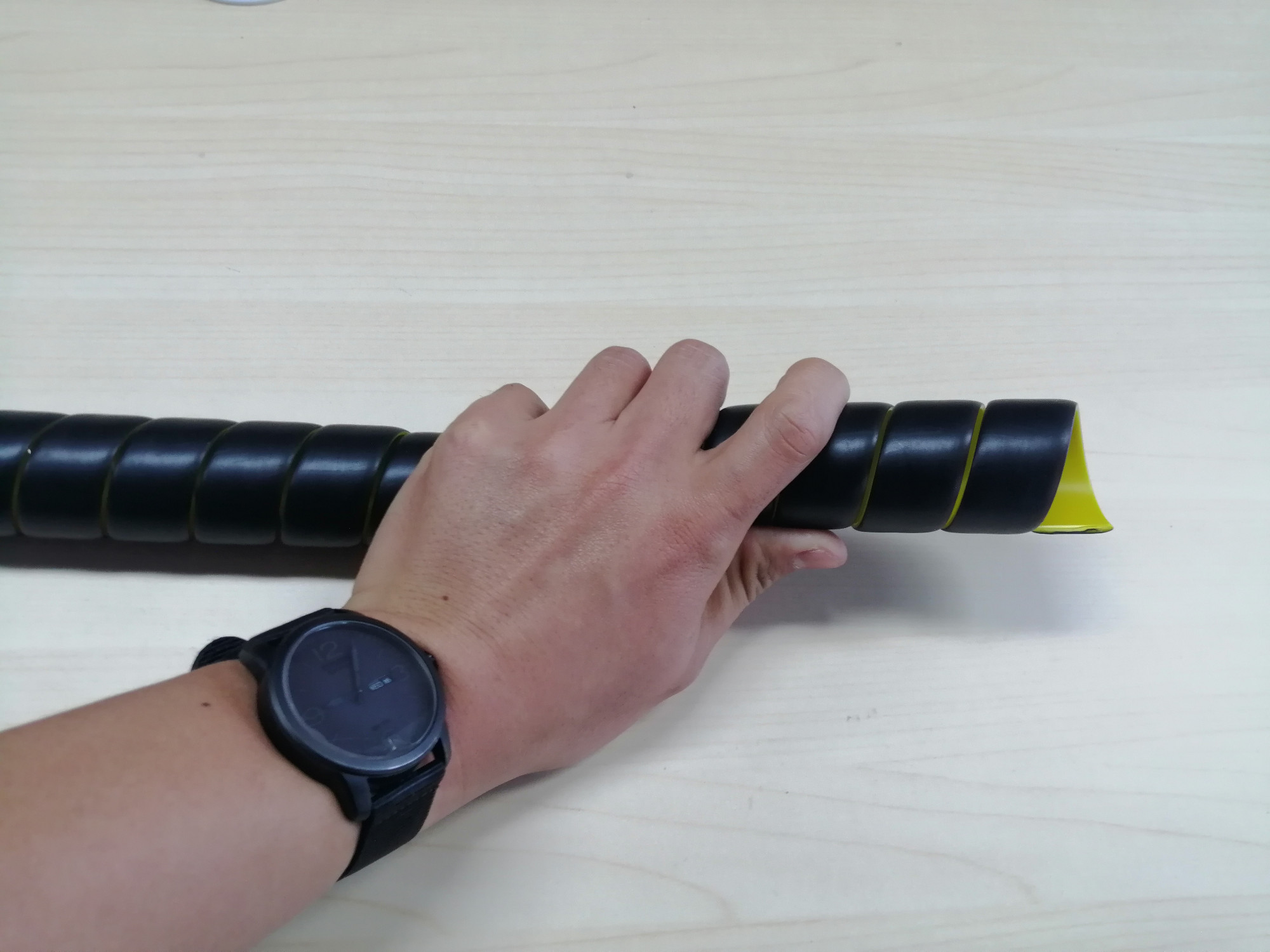

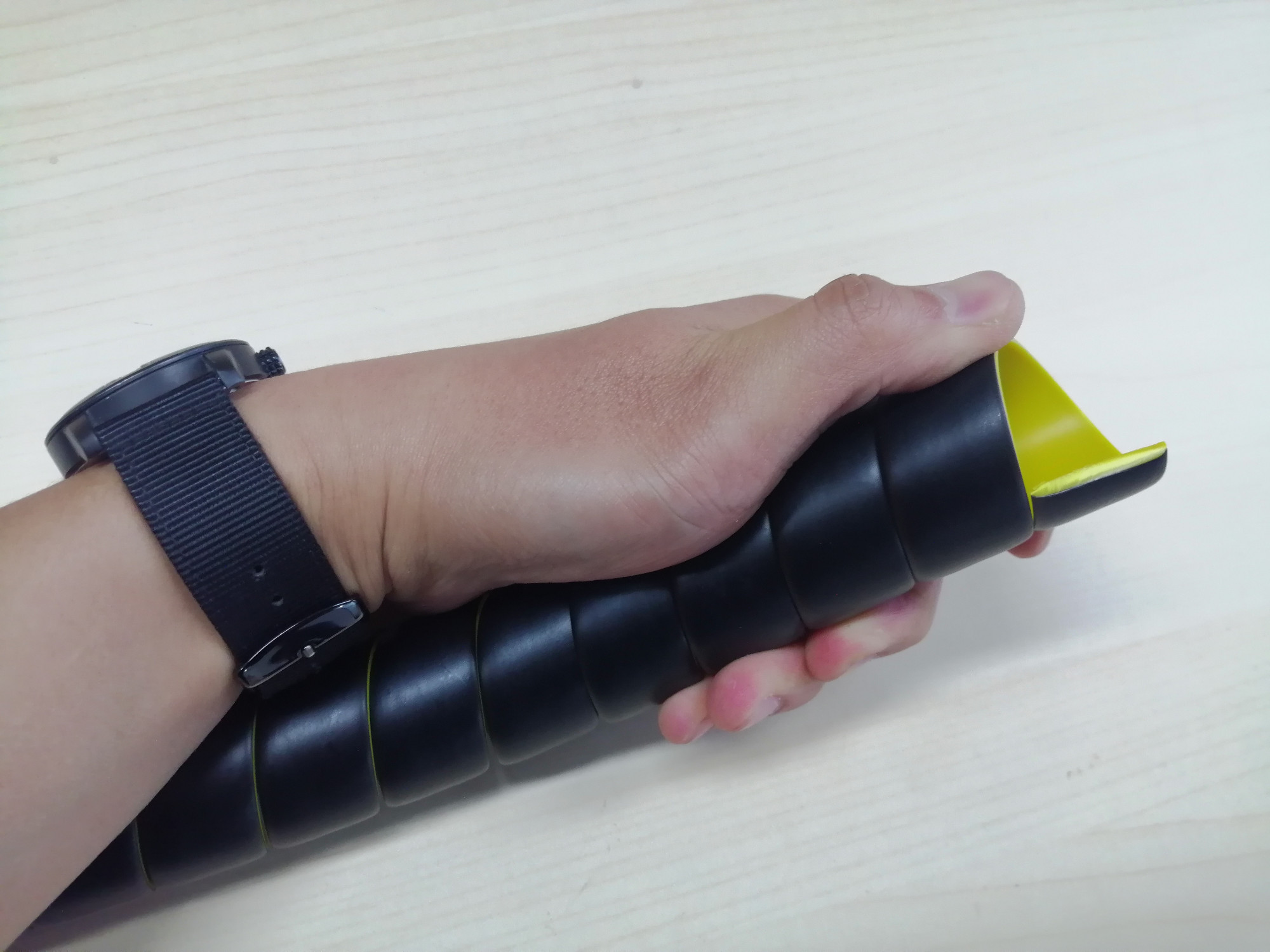

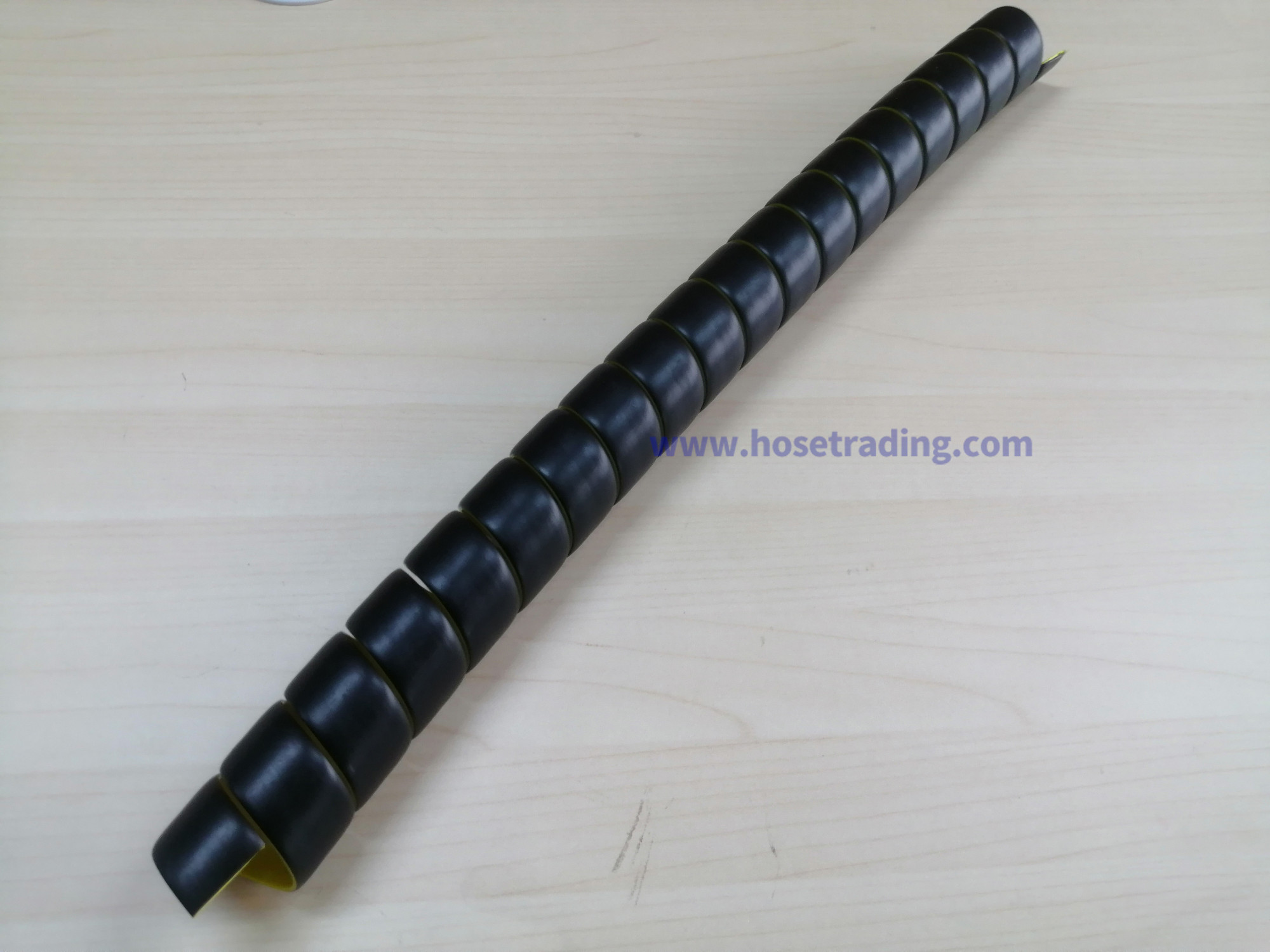

Spiral Guard Double Colored is a 2-coloured Wear Indicator Spiral.
It helps to identify those problematic points that are exposed to abrasion or hard hits and therefore need more punctual monitoring:
once the black top layer wears off and the yellow color appears this indicates that the spiral should soon be replaced.
Markets:
Transportation
RV&Bus
Military
Construction
Agriculture
Grounds&Building Maintenance
Forestry
Railroad
Utility Equipment
Personal Lift Equipment
Machine Tool
Oil Field Service
Waste&Refuse
Material Handling
Marine
Paving&Road Maintenance
Ground Support Equipment
Industrial
Mining
Automotive
Features/Benefits:
Flat design of spiral provides solid protection
Made of Poly Propylene, Resistant to acids, oil and solvents,
Poly UV-tolerant, Halogen free, Reusable
Tolerates both heat and frost
Applications:
Harsh abrasive applications and rugged environments.
Specifications:
Temperature Range: -40°C-100°C
|
Item Number |
Inner Diameter |
Outside Diameter |
Coil Lenth |
|
HGSGD |
mm |
mm |
m |
|
HGSG12D |
12 |
11-13 |
100 |
|
HGSG14D |
14 |
13-15 |
100 |
|
HGSG16D |
16 |
15-17 |
100 |
|
HGSG18D |
18 |
17-19 |
50 |
|
HGSG20D |
20 |
19-21 |
50 |
|
HGSG22D |
22 |
21-23 |
50 |
|
HGSG25D |
25 |
24-26 |
30 |
|
HGSG28D |
28 |
27-29 |
30 |
|
HGSG30D |
30 |
29-31 |
25 |
|
HGSG32D |
32 |
31-33 |
25 |
|
HGSG35D |
35 |
34-36 |
20 |
|
HGSG38D |
38 |
37-39 |
20 |
|
HGSG40D |
40 |
39-41 |
20 |
|
HGSG42D |
42 |
41-43 |
20 |
|
HGSG45D |
45 |
44-47 |
20 |
|
HGSG50D |
50 |
48-52 |
20 |
Colors: standard black and yellow, other colors available on request,
Available in coils and pre-cut length, custom packaging.
