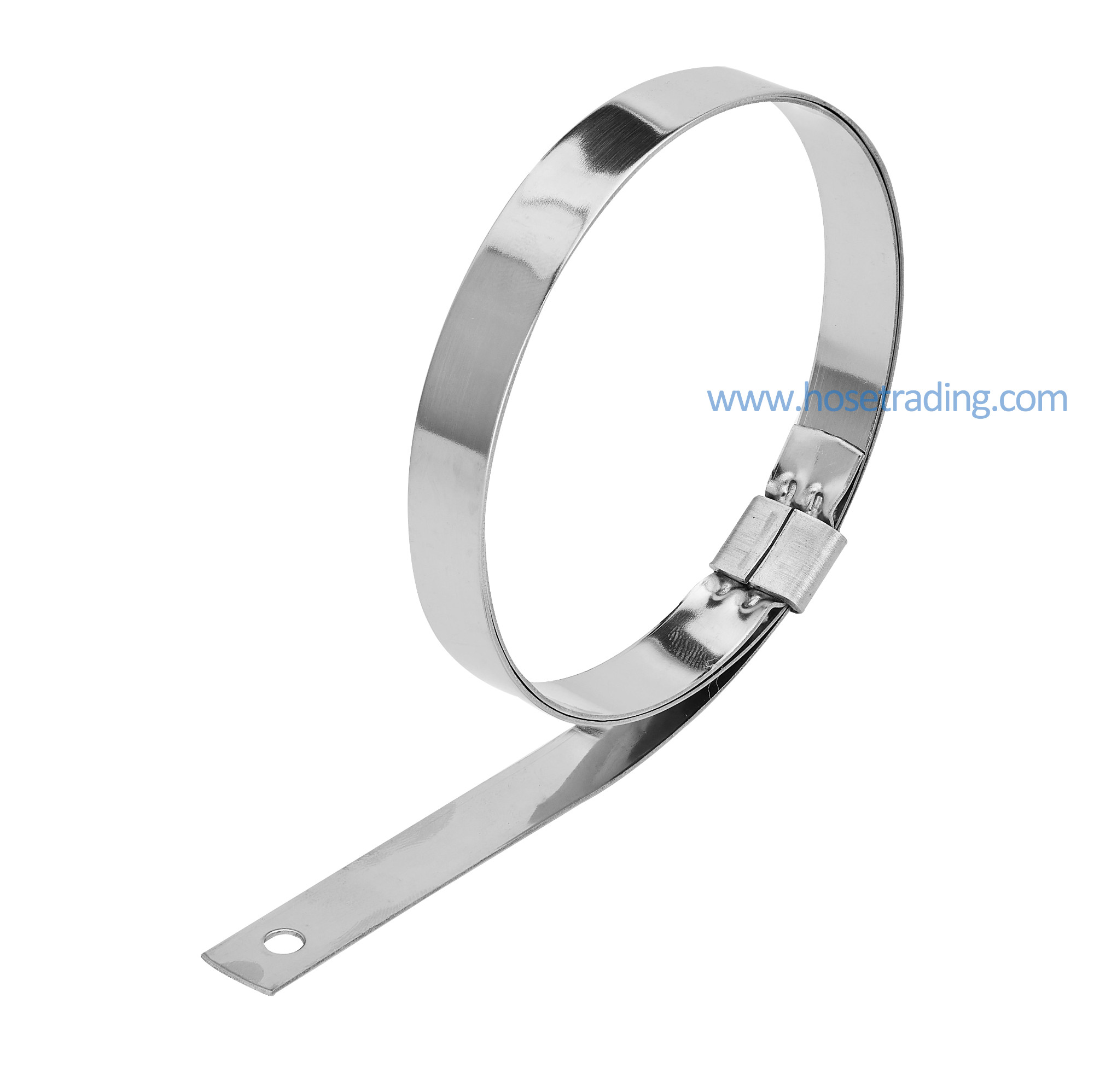

Center Punch Band Clamp

Product Descriptions

Center Punch Band Clamp is a product designed for clamping hose in place. It is installed by tightening around the hose and being punched on the buckle. Its use is a proven method of retaining hose couplings in industrial hose applications.
Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits

Lock with impact from a hammer using a conical punch tool

Manufactured with stainless steel buckles for added locking strength

Not recommended for use with fittings that may crack as a result of impact

Applications:

For secure tube joints on pumps, engines, exhaust systems, filters, and food and chemical processing equipment

Specifications:

Made of Stainless Steel,

Band width: 5/8 Inch(15.8mm)

Item Number	Clamp Size	Clamp Size	Band Width	Band Thickness
CCPBC	Inch	mm	inch	mm
CCPBC25	1	25	5/8	0.55
CCPBC32	1 1/4	32	5/8	0.55
CCPBC38	1 1/2	38	5/8	0.55
CCPBC44	1 3/4	44	5/8	0.55
CCPBC51	2	51	5/8	0.55
CCPBC57	2 1/4	57	5/8	0.55
CCPBC64	2 1/2	64	5/8	0.55
CCPBC70	2 3/4	70	5/8	0.55
CCPBC76	3	76	5/8	0.55
CCPBC89	3 1/2	89	5/8	0.55
CCPBC102	4	102	5/8	0.55
CCPBC113	4 1/2	113	5/8	0.55
CCPBC127	5	127	5/8	0.55
CCPBC152	6	152	5/8	0.55
CCPBC178	7	178	5/8	0.55
CCPBC203	8	203	5/8	0.55
