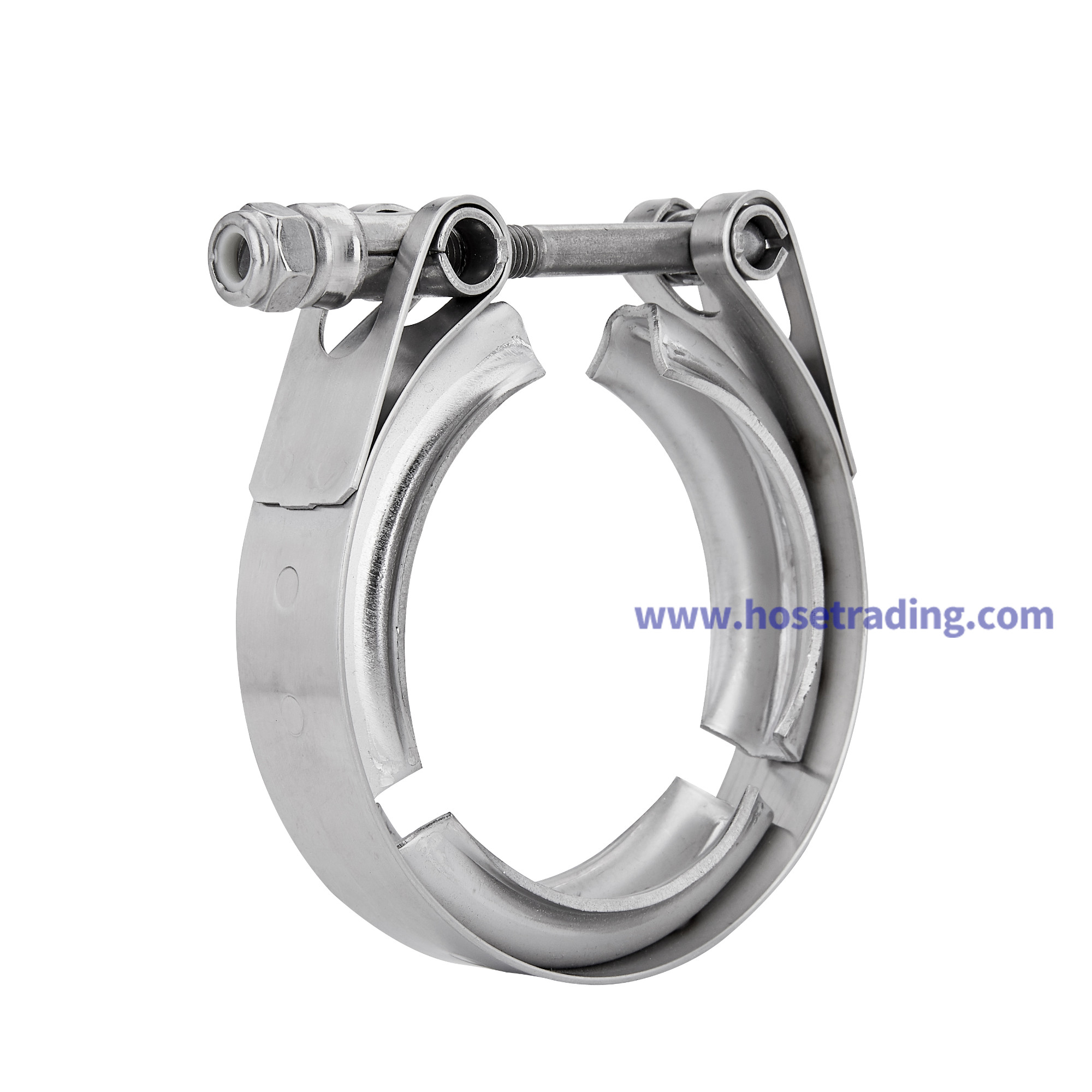

V Band Clamp

Product Descriptions

V Band Clamp is made out of stainless steel, with zinc-plated bolts making for a durable and reliable product. It can connect almost any flanged joints and offers effective fastening solutions in a wide range of applications including pumps, engines, exhaust systems, filters, and food and chemical processing equipment. Because V-Band Couplings can be easily assembled and disassembled, they are often used on equipment that requires frequent service or maintenance.
Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Prevent leaks from occuring without the need of gasket

Quick assembly and disassembly reduces the time it takes to assemble a system in intial building system program and during matience

Requires less working space and can provide a reduction in overall weight when compared to the traditional bolted flange systems

Applications:

For secure tube joints on pumps, engines, exhaust systems, filters, and food and chemical processing equipment

Specifications:

Material: Stainless Steel

Clamp sizes: 1 1/2’- 6’, custom sizes available upon request

Item Number	Clamp Size	Flange Inner Diameter	Rod Size
CVBC	Inch	mm
CVBC38.9	1 1/2	38.9	1/4-28UNF-L68.5
CVBC45.2	1 3/4	45.2	1/4-28UNF-L68.5
CVBC51.6	2	51.6	1/4-28UNF-L68.5
CVBC57.9	2 1/4	57.9	1/4-28UNF-L68.5
CVBC60.5	2 9/25	60.5	1/4-28UNF-L68.5
CVBC64.3	2 1/2	64.3	1/4-28UNF-L68.5
CVBC70.6	2 3/4	70.6	1/4-28UNF-L68.5
CVBC77.0	3	77.0	5/16-28UNF-L188.9
CVBC83.3	3 1/4	83.3	5/16-28UNF-L188.9
CVBC89.7	3 1/2	89.7	5/16-28UNF-L188.9
CVBC109.4	4	109.4	5/16-28UNF-L188.9
CVBC115.1	4 1/2	115.1	5/16-28UNF-L188.9
CVBC127.8	5	127.8	5/16-28UNF-L188.9
CVBC153	6	153	5/16-28UNF-L188.9
