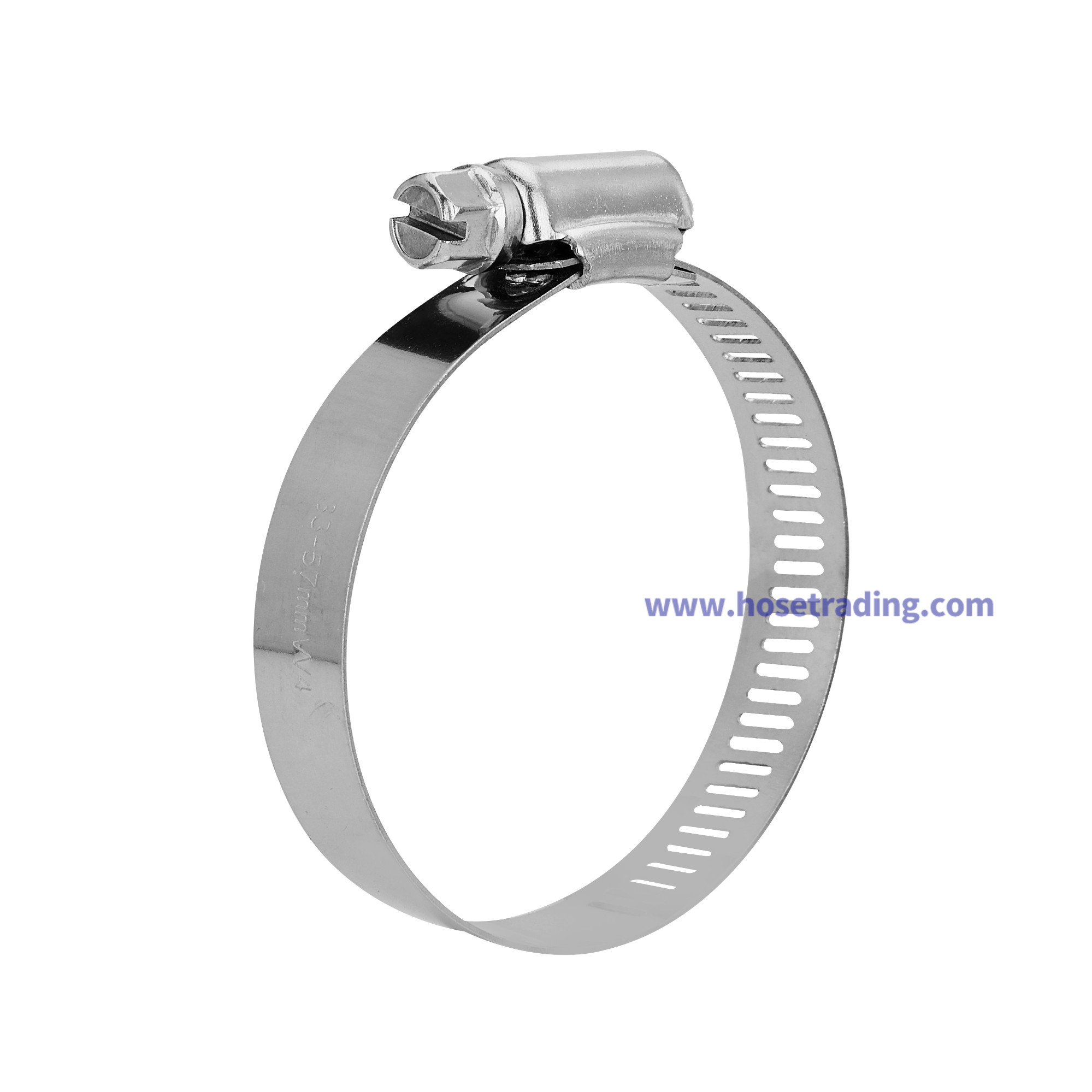

Worm Gear Clamp

Product Descriptions

Worm Gear Clamp is a metal band clamp. It features a helical-threaded screw, or worm gear, that is housed in the clamp. And it provides a hi-torque clamp that prevents hose connections from slacking, and they also prevent leakage. When the included screw is turned on the clamp worm drive, it acts like a worm drive pulling the threads of the band. This causes the metal band to tighten around the hose or tube. Alternatively, when turning the screw in the counter direction, the band will come loose.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Be interlocked to prevent shearing

Prevent marring of the hose and fumes escaping

Resist rust and corrosion and are useful in humid or damp conditions

Applications:

For secure clamping applications

For use with low pressure industrial duct hose applications

Specifications:

Material: Stainless Steel

Band Width: 1/2 inch(12.7mm),

Other widths, 9mm, 12mm, 14.2mm, available on request.

Band Thickness: 1/40 inch(0.6mm)

Item Number	Band Width	Band Thickness	Clamping Range	Clamping Range
CWGC	inch	mm	mm	inch
CWGC10	1/2	0.6	10-22	7/8
CWGC11	1/2	0.6	11-25	1
CWGC14	1/2	0.6	14-27	1 1/16
CWGC18	1/2	0.6	18-32	1 1/4
CWGC21	1/2	0.6	21-38	1 1/2
CWGC21-1	1/2	0.6	21-44	1 3/4
CWGC27	1/2	0.6	27-51	2
CWGC33	1/2	0.6	33-57	2 1/4
CWGC40	1/2	0.6	40-63	2 1/2
CWGC46	1/2	0.6	46-70	2 3/4
CWG52	1/2	0.6	52-76	3
CWG59	1/2	0.6	59-82	3 1/4
CWG65	1/2	0.6	65-89	3 1/2
CWG72	1/2	0.6	72-95	3 3/4
CWG78	1/2	0.6	78-101	4
CWG84	1/2	0.6	84-108	4 1/4
CWG91	1/2	0.6	91-114	4 1/2
CWG105	1/2	0.6	105-127	5
CWG118	1/2	0.6	118-140	5 1/2
CWG130	1/2	0.6	130-152	6
CWG143	1/2	0.6	143-165	6 1/2
CWG155	1/2	0.6	155-178	7
