Product Descriptions

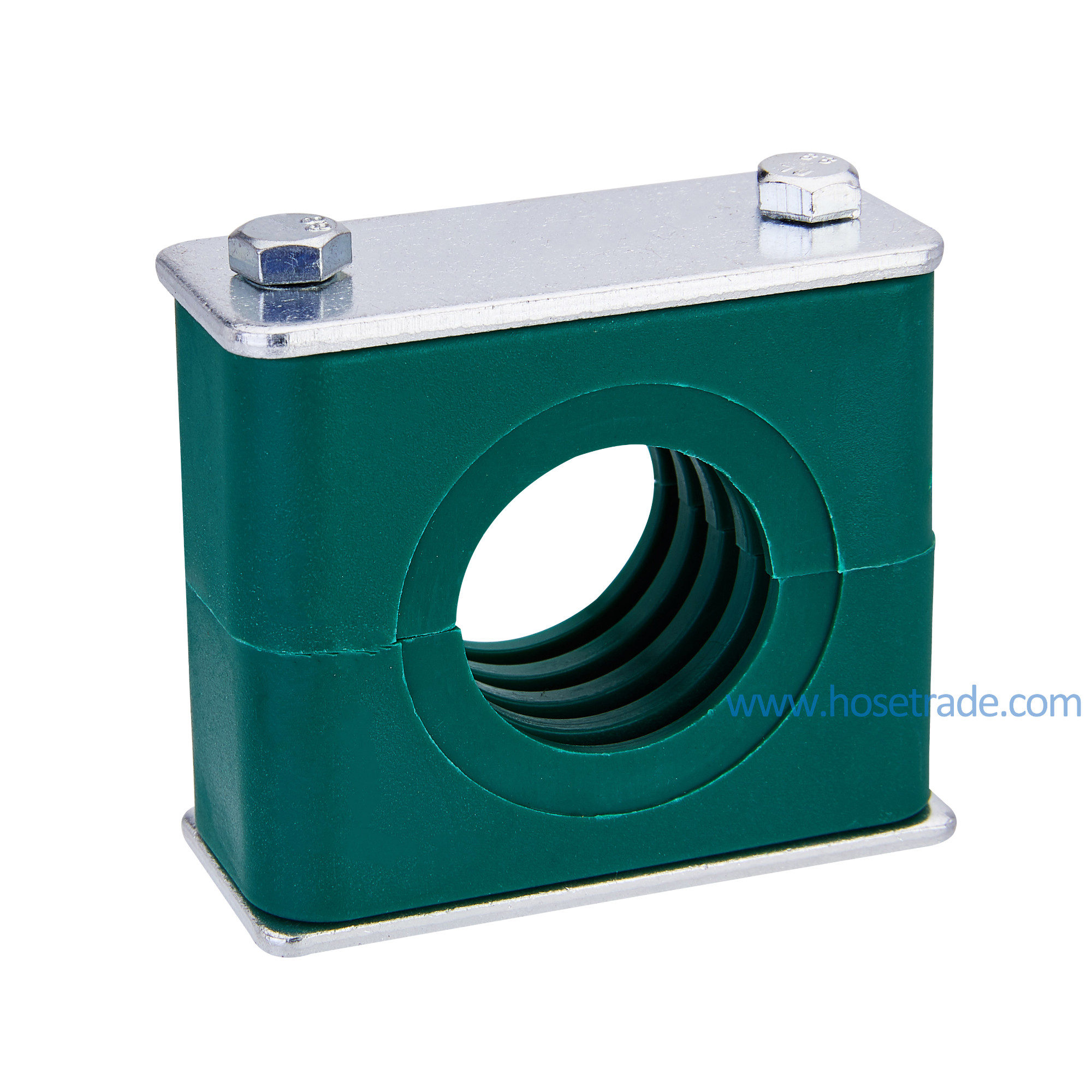

Tube and Pipe Clamp is a product made from Polyproplene and Steel. It’s used to secure tube or pipe in place with its bolt and welded plate anchored to machinesry. And it offers a high degree of shock and vibration absoration and is widely applied in standard systems with less than 1500 PSI without dynamic loads.
Markets:Automotive
Defence
Energy
Environment
Industrial
Infrastructure
Machine Tools
Materials Handling
Mobile
Oil and Gas
Power Generation
Process
Transportation
Water
Applications:
Suitable for general hydraulic applications
Features/Benefits:
The function of tube clamp is the fixing of straight tubes, bent tubes, and hoses.
Its noteable features are re-set capability, high tensile strength, very high abrasion resistance and excellent resistance to cold.
Specifications:
Material: Polypropylene and Steel
Polyamide&Steel, Aluminum are both available.
Complied with DIN 3015
Standard Duty Tube Clamp for normal mechanical requirements are available in
8 sizes. Outer tube diameter for the metric series 6-102mm.
Heavy Duty Tube Clamp for high mechanical requirements are available in 11
sizes. Outer tube diameter for the metric series 6-508mm.
Twin Tube Clamp for normal mechanical requirements are available in 5 sizes.
Outer tube diameter for the metric series 6-42.
Polypropylene -30°C-90°C, color dark green
Polyamide -40°C-120°C, color black
Aluminum +300°C
All metal parts are also available in stainless steel. Other materials upon request.
Standard Duty Clamps
Clamp Size |
Outer Diameter |
Inner Diameter |
Outer Diameter |
Item Number |
|
mm |
inch |
inch |
2 clamp halves weld plate-short cover plate and hex bolts |
0 |
6 |
|
|
TPCTLPG3-006 |
6.4 |
|
1/4 |
TPCTLPG3-006.4 |
|
8 |
|
5/16 |
TPCTLPG3-008 |
|
9.5 |
G1/8 |
3/8 |
TPCTLPG3-009.5 |
|
10 |
|
|
TPCTLPG3-010 |
|
12 |
|
|
TPCTLPG3-012 |
|
1 |
6 |
|
|
TPCTLPG3-106 |
6.4 |
|
1/4 |
TPCTLPG3-106.4 |
|
8 |
|
5/16 |
TPCTLPG3-108 |
|
9.5 |
G1/8 |
3/8 |
TPCTLPG3-109.5 |
|
10 |
|
|
TPCTLPG3-110 |
|
12 |
|
|
TPCTLPG3-112 |
|
2
|
12.7 |
|
1/2 |
TPCTLPG3-212.7 |
13.5 |
G1/4 |
|
TPCTLPG3-213.5 |
|
14 |
|
|
TPCTLPG3-214 |
|
15 |
|
|
TPCTLPG3-215 |
|
16 |
|
5/8 |
TPCTLPG3-216 |
|
17.2 |
G3/8 |
|
TPCTLPG3-217.2 |
|
18 |
|
|
TPCTLPG3-218 |
|
3 |
19 |
|
3/4 |
TPCTLPG3-319 |
20 |
|
|
TPCTLPG3-320 |
|
21.3 |
G1/2 |
|
TPCTLPG3-321.3 |
|
22 |
|
|
TPCTLPG3-322 |
|
23 |
|
|
TPCTLPG3-323 |
|
25 |
|
1 |
TPCTLPG3-325 |
|
4 |
26.9 |
G3/4 |
|
TPCTLPG3-426.9 |
28 |
|
|
TPCTLPG3-428 |
|
30 |
|
|
TPCTLPG3-430 |
|
5
|
32 |
|
1 1/4 |
TPCTLPG3-532 |
33.7 |
G1 |
|
TPCTLPG3-533.7 |
|
35 |
|
|
TPCTLPG3-535 |
|
38 |
|
1 1/2 |
TPCTLPG3-538 |
|
40 |
|
|
TPCTLPG3-540 |
|
42 |
G1 1/4 |
|
TPCTLPG3-542 |
|
6
|
44.5 |
|
1 3/4 |
TPCTLPG3-644.5 |
45 |
|
|
TPCTLPG3-645 |
|
48 |
G1 1/2 |
|
TPCTLPG3-648 |
|
50 |
|
|
TPCTLPG3-650 |
|
50.8 |
|
2 |
TPCTLPG3-650.8 |
|
52 |
|
|
TPCTLPG3-652 |
|
55 |
|
|
TPCTLPG3-655 |
|
57 |
|
2 1/4 |
TPCTLPG3-657 |
