Spring Guard

Product Descriptions

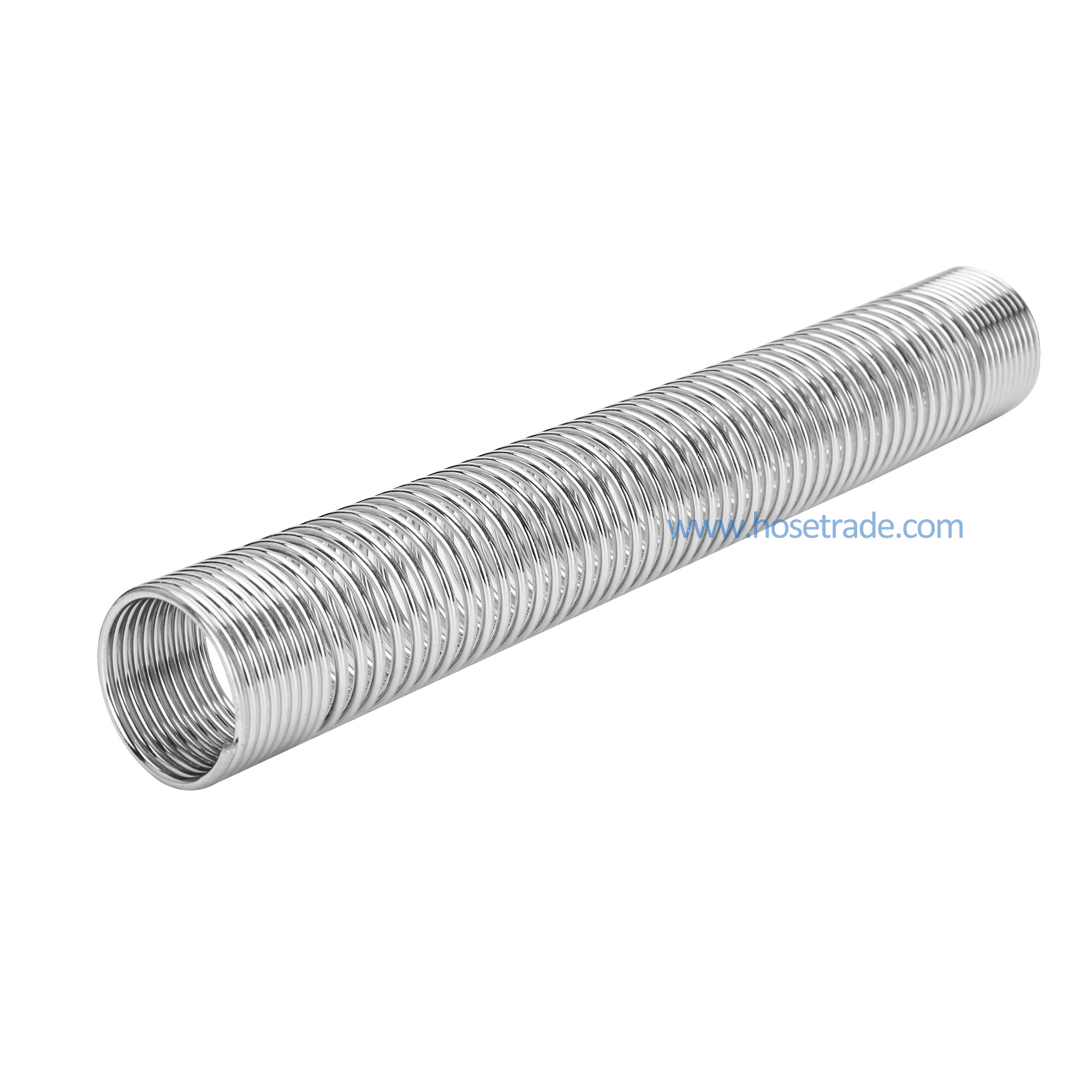

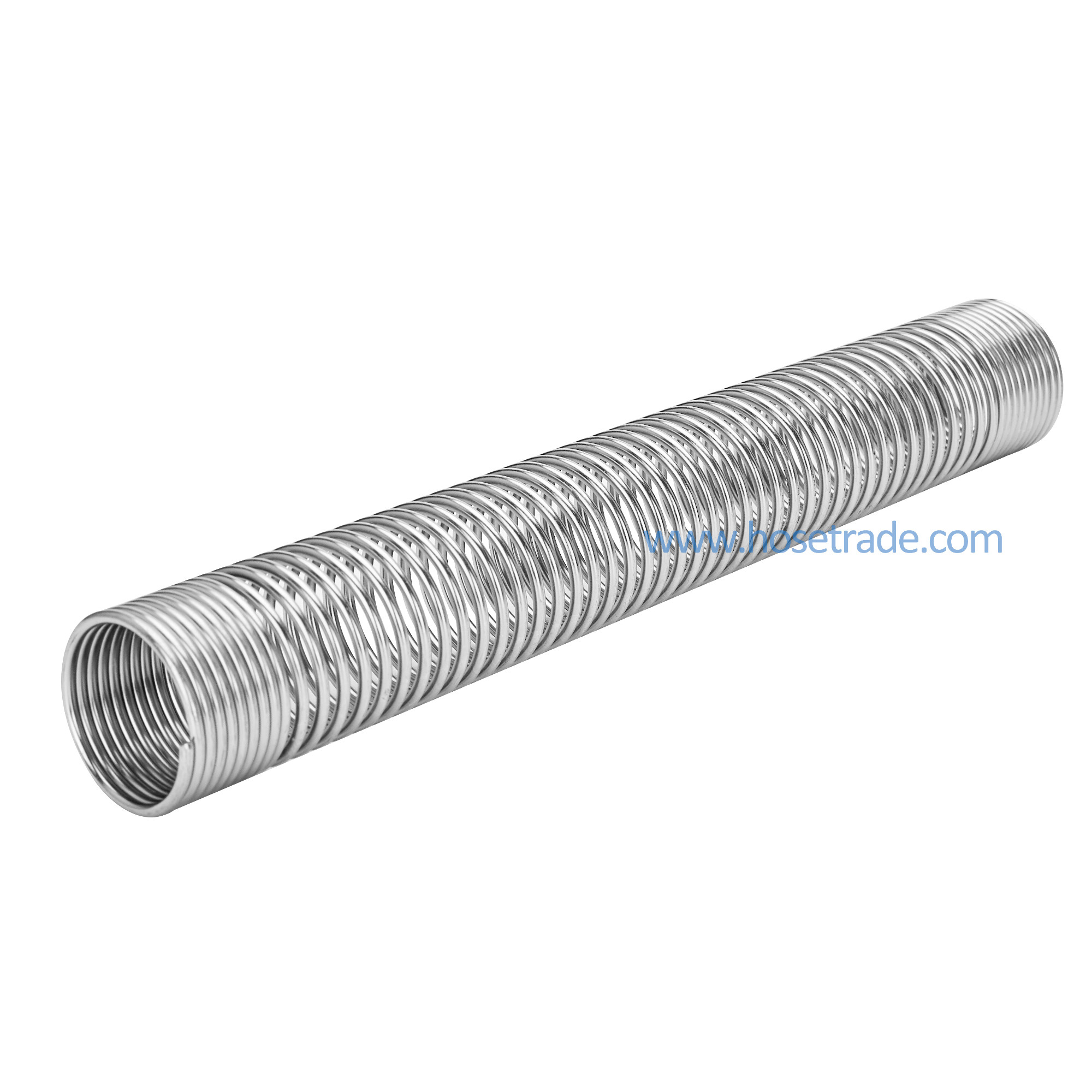

Spring Guard is a product that prolongs the life of those hose lines that are exposed to rugged operating conditions. They distribute bending radii to avoid kinking in the hose lines and protects hose from abrasion and deep cuts. Guards are construted of steel wire and plated to resist rust.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Plated steel wire construction to resist rust

Protects against abrasion, cuts, and kinking

Applications:

Harsh abrasive applications and rugged environments.

Specifications:

Temperature Range: -17°C-93°C

Item Number	Inner Diameter	Coil Diameter	Coil Length
HGSRG	mm	mm	m
HGSRG045	4.5	0.6	4
HGSRG065	6.5	0.7	4
HGSRG082	8.2	1.0	1.2
HGSRG088	8.8	1.0	1.2
HGSRG093	9.3	1.0	1.2
HGSRG100	10.0	1.0	1.2
HGSRG110	11	1.0	1.2
HGSRG120	12	1.2	1.2
HGSRG130	13	1.2	1.2
HGSRG140	14	1.2	1.2
HGSRG150	15	1.4	1.2
HGSRG160	16	1.4	1.2
HGSRG170	17	1.4	1.2
HGSRG180	18	1.5	1.2
HGSRG190	19	1.5	1.2
HGSRG200	20	1.5	1.2
HGSRG210	21	1.5	1.2
HGSRG220	22	1.5	1.2
HGSRG230	23	1.6	1.2
HGSRG240	24	1.6	1.2
HGSRG250	25	1.6	1.2
HGSRG260	26	1.6	1.2
HGSRG275	27.5	1.8	1.2
HGSRG280	28	2.0	1.2
HGSRG290	29	2.0	1.2
HGSRG300	30	2.0	1.2
HGSRG310	31	2.0	1.2
HGSRG320	32	2.0	1.2
HGSRG330	33	2.0	1.2
HGSRG340	34	2.0	1.2
HGSRG360	36	2.2	1.2
HGSRG380	38	2.2	1.2
HGSRG405	40.5	2.5	1.2
HGSRG420	42	2.5	1.2
HGSRG440	44	2.5	1.2
HGSRG460	46	2.5	1.2
HGSRG480	48	2.5	1.2
HGSRG510	51	2.8	1.2
HGSRG530	53	2.8	1.2
HGSRG550	55	2.8	1.2
HGSRG570	57	2.8	1.2
HGSRG620	62	3.0	1.2
HGSRG650	65	3.0	1.2
HGSRG700	70	3.0	1.2
HGSRG740	74	3.0	1.2
