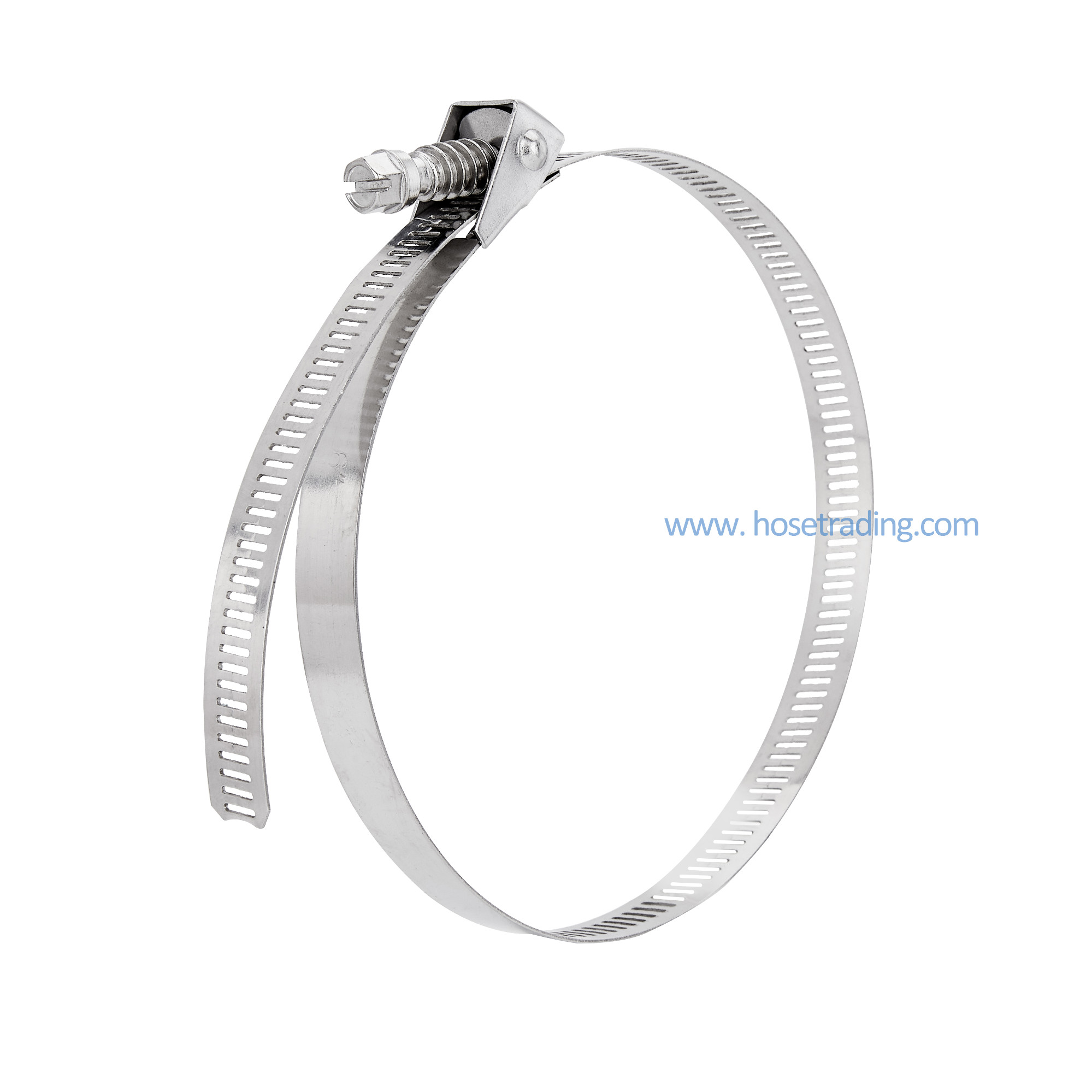

Quick Release Worm Gear Clamp

Product Descriptions

Worm Gear Clamp is a metal band clamp. It features a helical-threaded screw, or worm gear, that is housed in the clamp. And it provides a hi-torque clamp that prevents hose connections from slacking, and they also prevent leakage. When the included screw is turned on the clamp worm drive, it acts like a worm drive pulling the threads of the band. This causes the metal band to tighten around the hose or tube. Alternatively, when turning the screw in the counter direction, the band will come loose.
Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Adjustable worm gear style clamp to securely attach hose

Quick Release Clamps hold sleeves in place

Applications:

For secure clamping applications

For use with low pressure industrial hose applications

Specifications:

Material: Stainless Steel

Band Width: 1/2 inch(12.7mm), Other widths, 9mm, 12mm, 14.2mm, available on request

Item Number	SAE Size	Band Width	Band Thickness	Clamping Range	Clamping Range
CQRC	Number	mm	mm	mm	inch
CQRC12	12	12.7	0.6	13-32	1/2-1 1/4
CQRC20	20	12.7	0.6	19-44	3/4-1 3/4
CQRC24	24	12.7	0.6	26-51	3/4-2
CQRC28	28	12.7	0.6	26-57	1-2 1/4
CQRC36	36	12.7	0.6	26-70	1- 2 3/4
CQRC48	48	12.7	0.6	38-89	1-3 1/2
CQRC56	56	12.7	0.6	26-101	1-4
CQRC72	72	12.7	0.6	51-127	2-5
CQRC88	88	12.7	0.6	51-152	2-6
CQRC104	104	12.7	0.6	45-178	2-7
CQRC116	116	12.7	0.6	45-197	1 3/4-7 3/4
CQRC128	128	12.7	0.6	45-216	4 1/4-8 1/2
CQRC135	136	12.7	0.6	45-228	1 3/4-9
CQRC152	152	12.7	0.6	51-254	2-10
CQRC188	188	12.7	0.6	51-311	2-12 1/14
