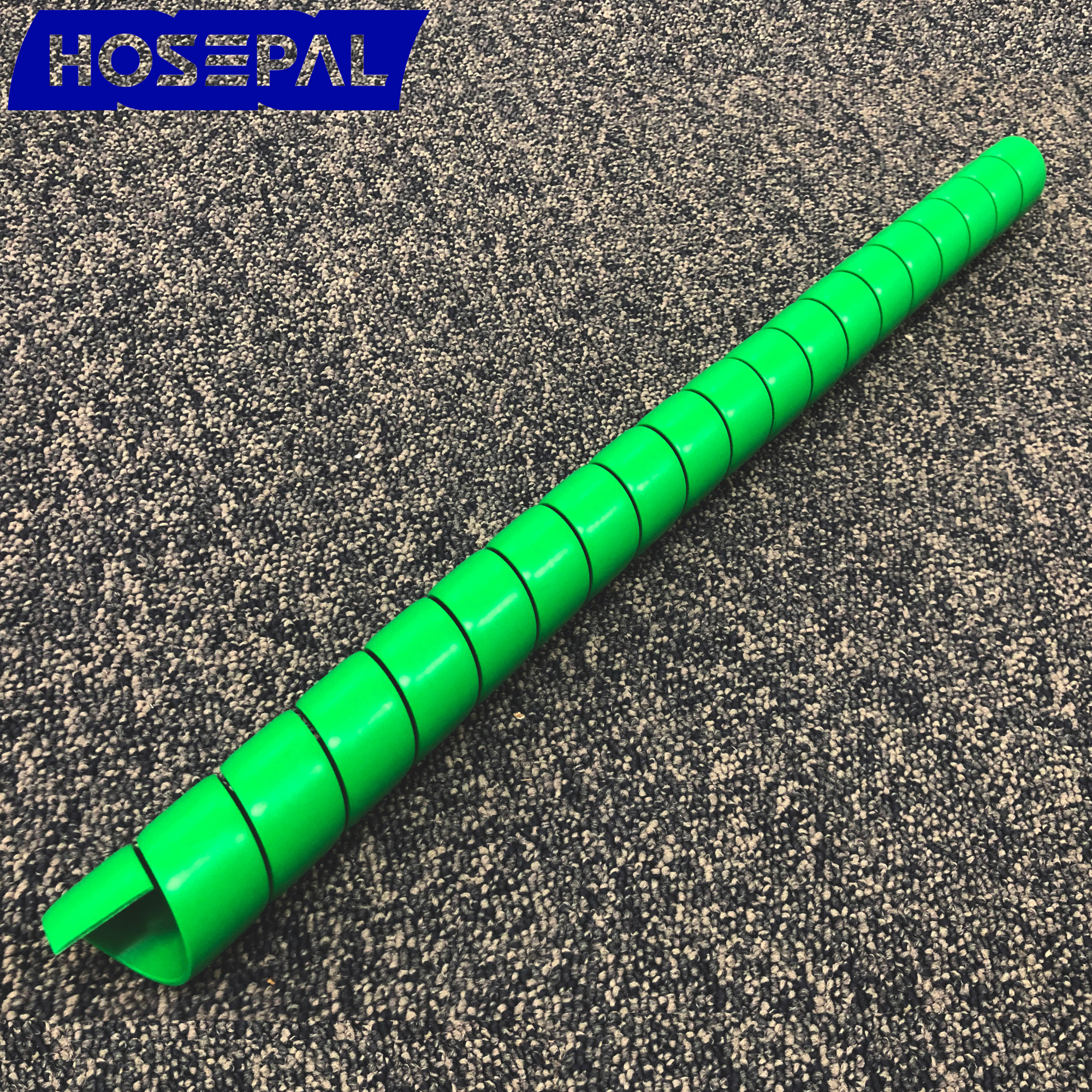

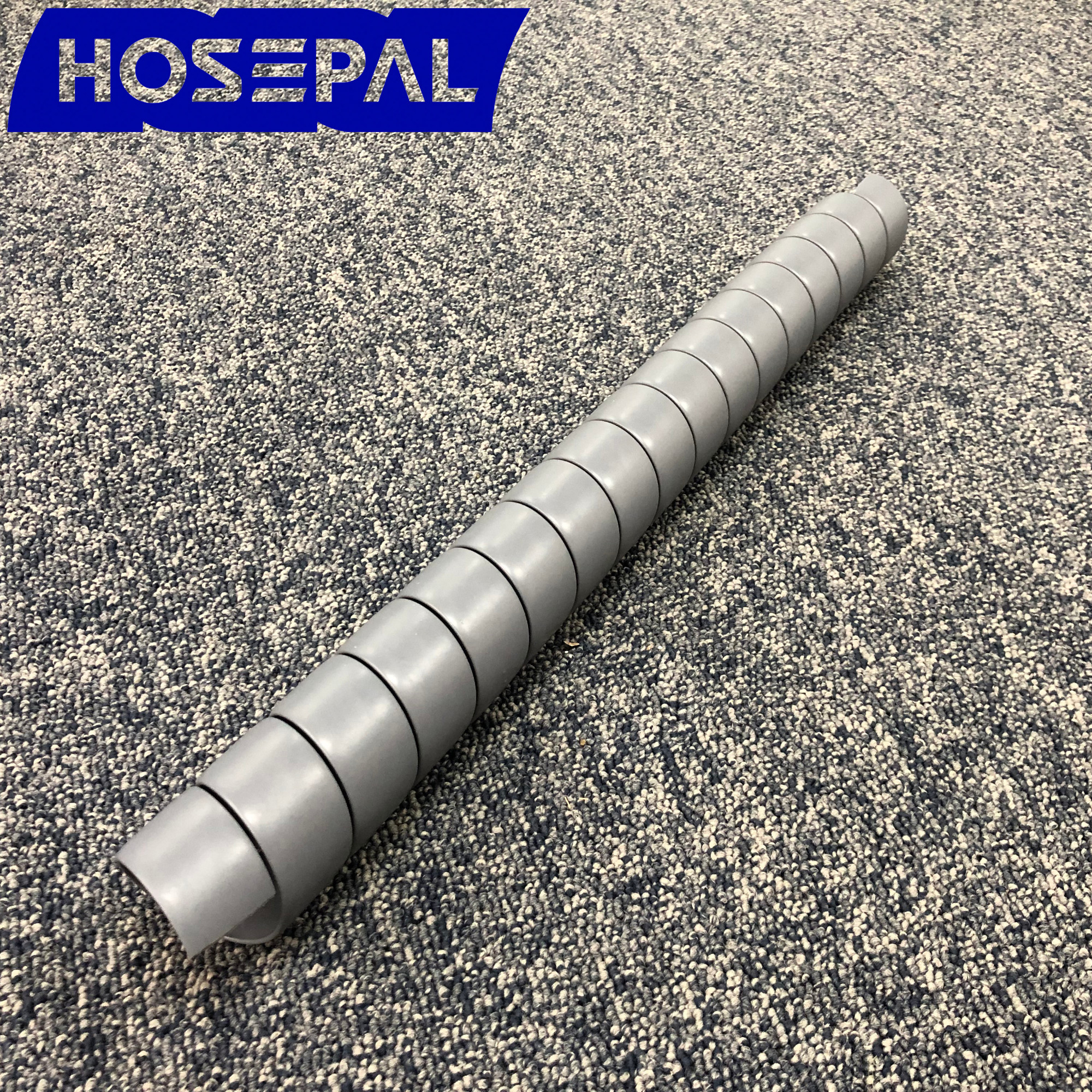

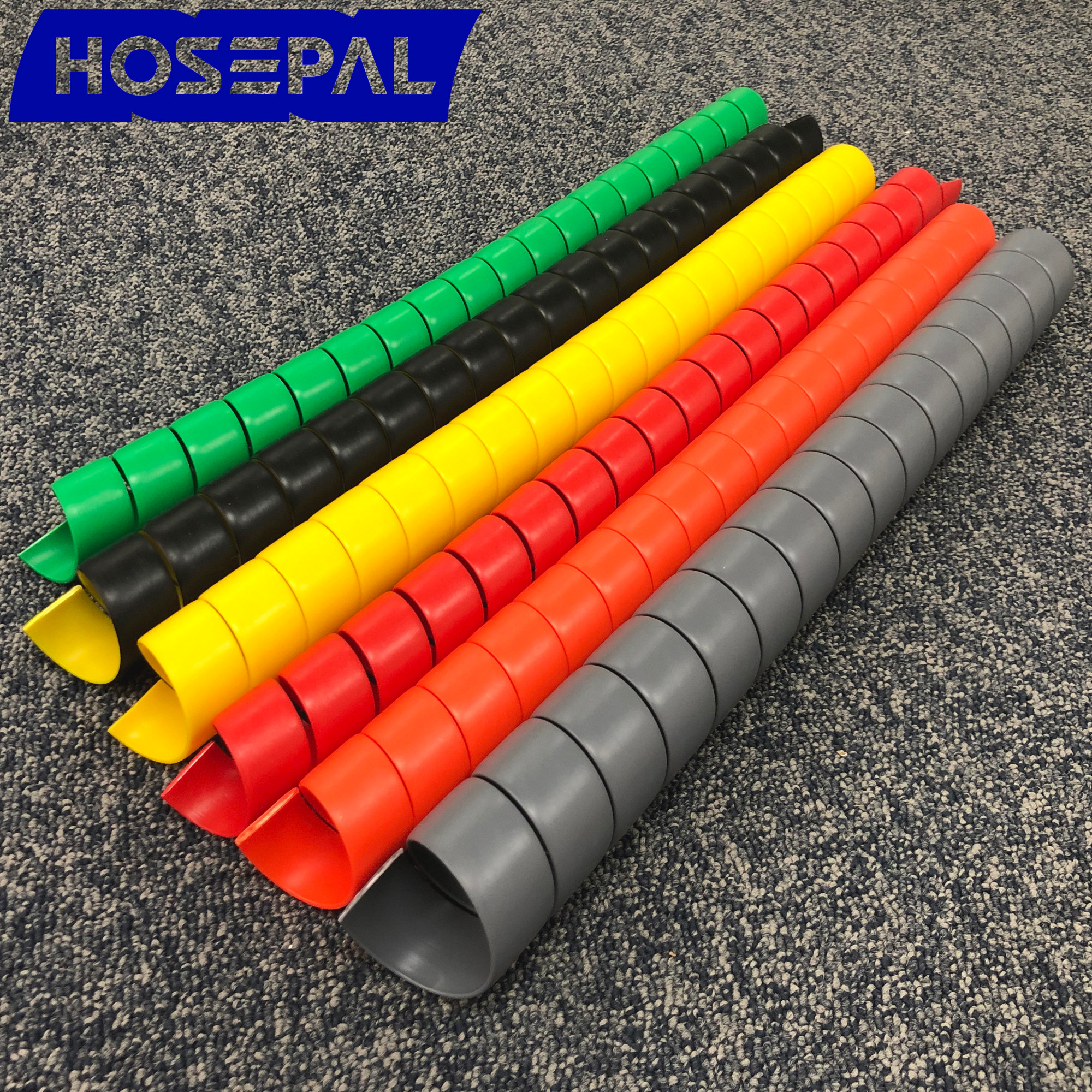

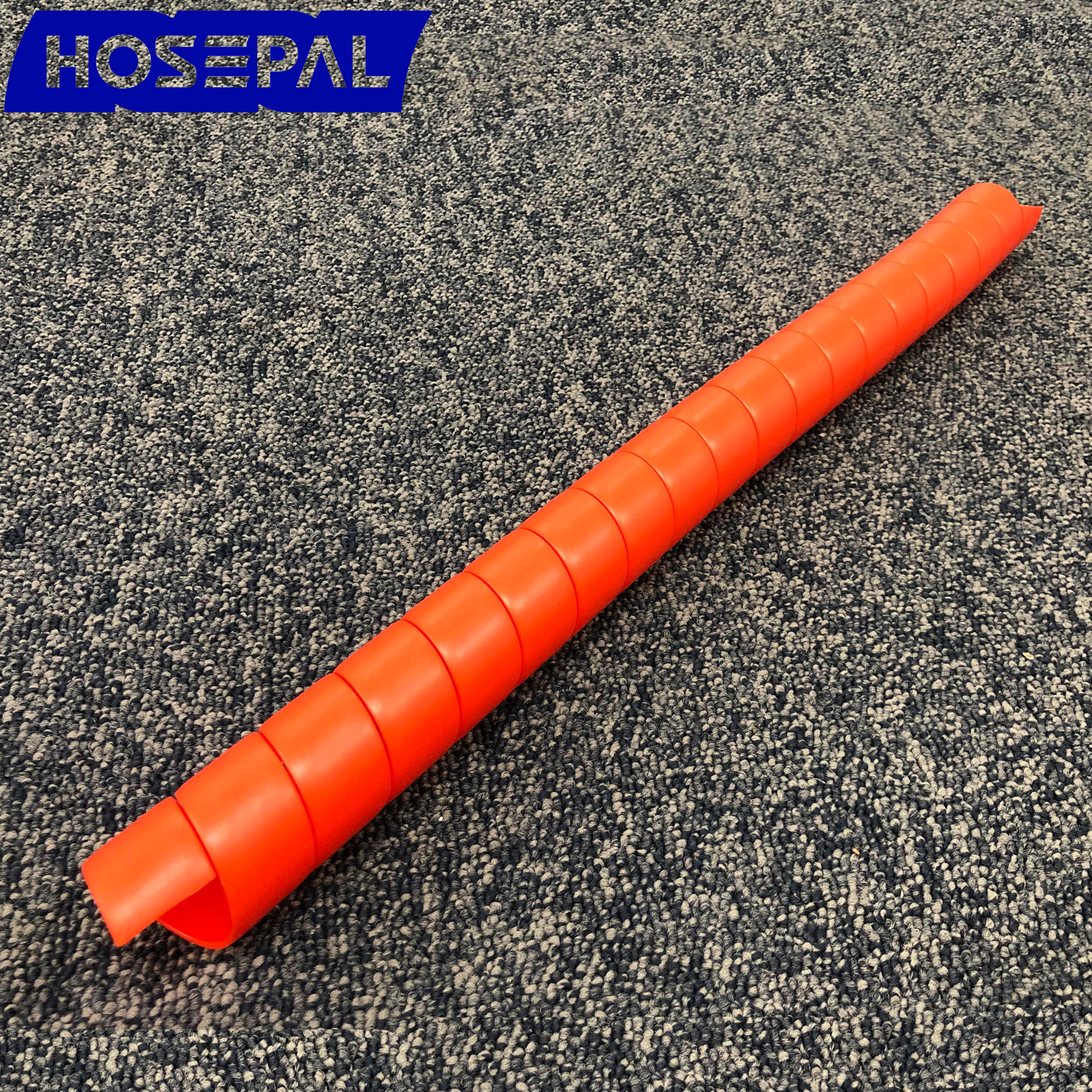

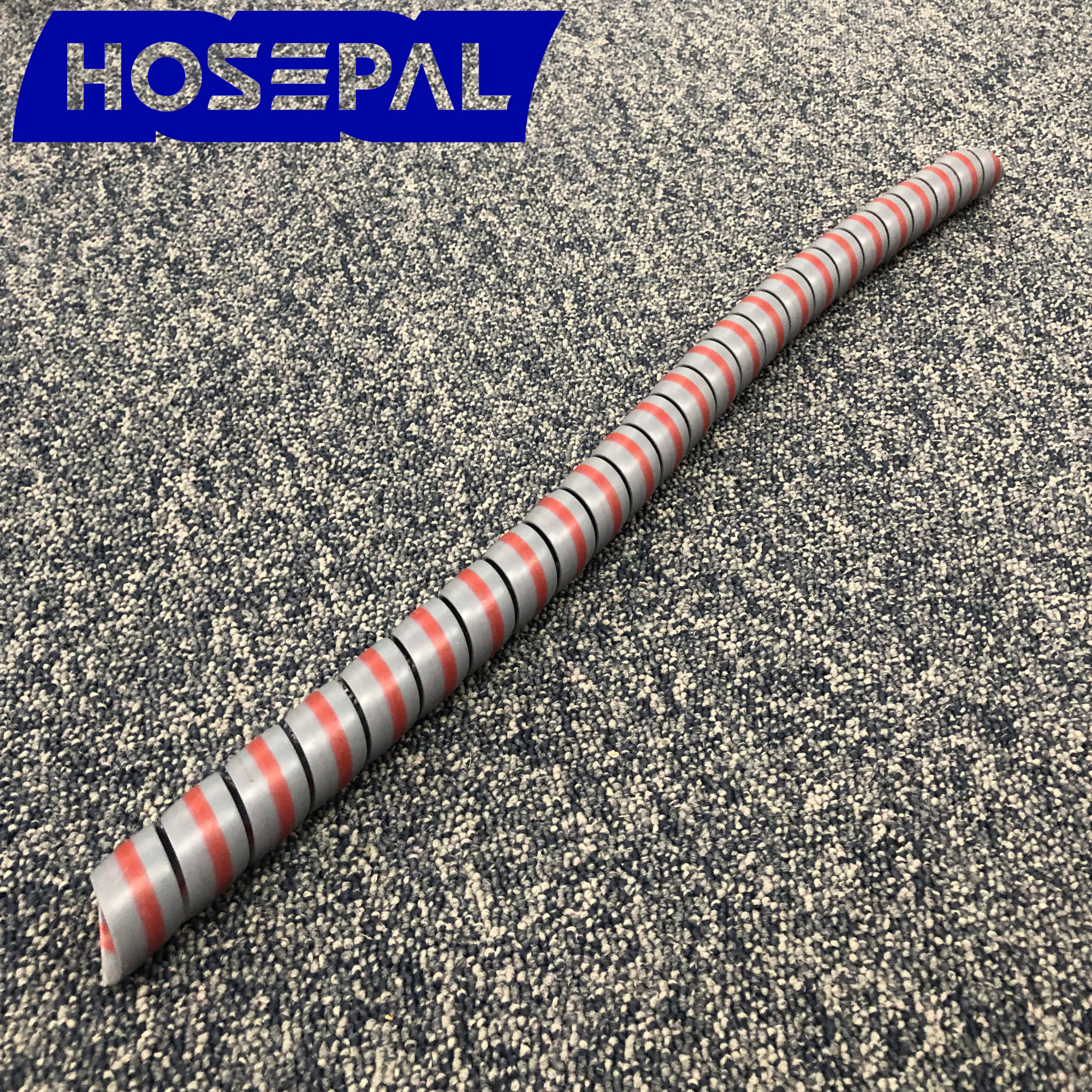

Spiral Guard Plus

Product Descriptions

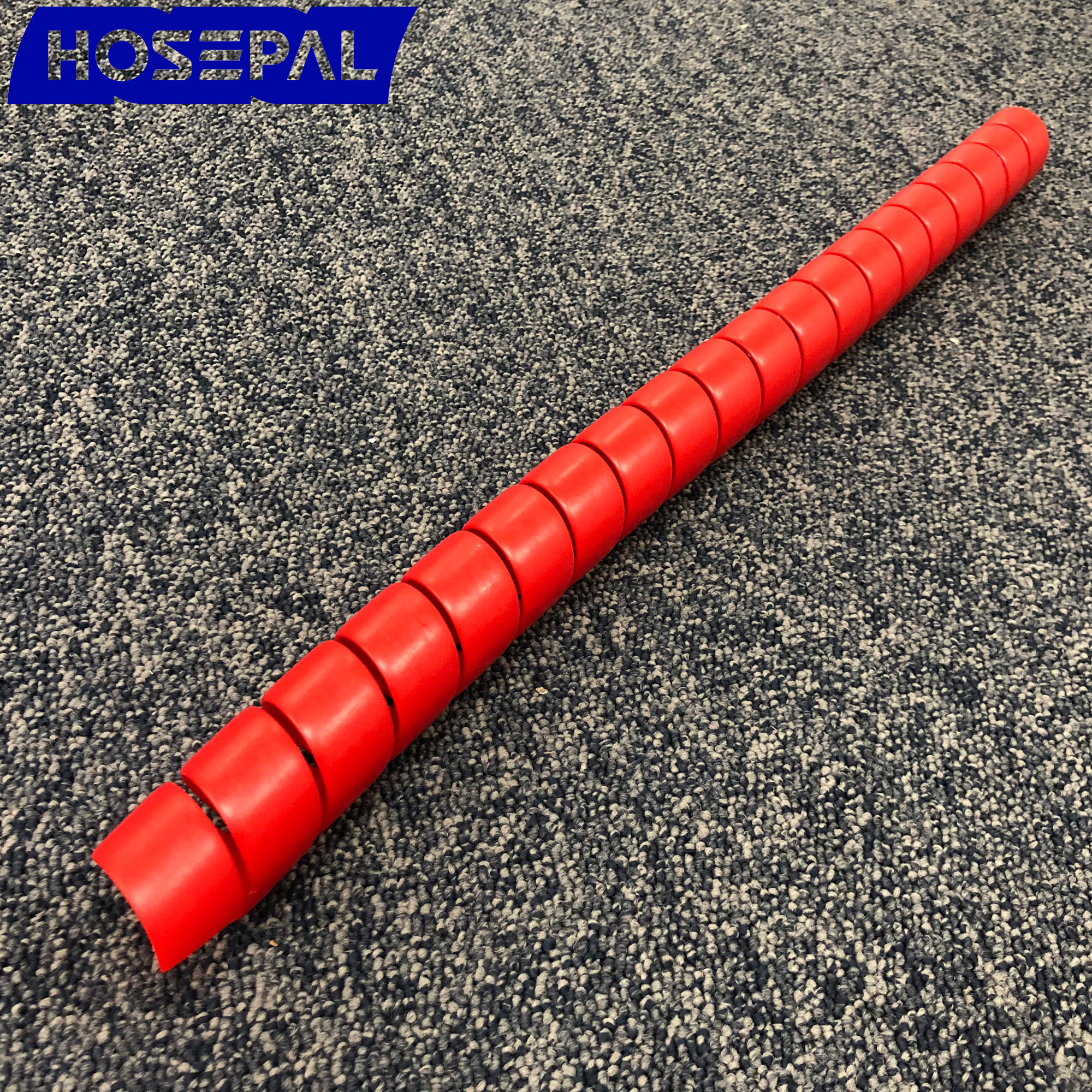

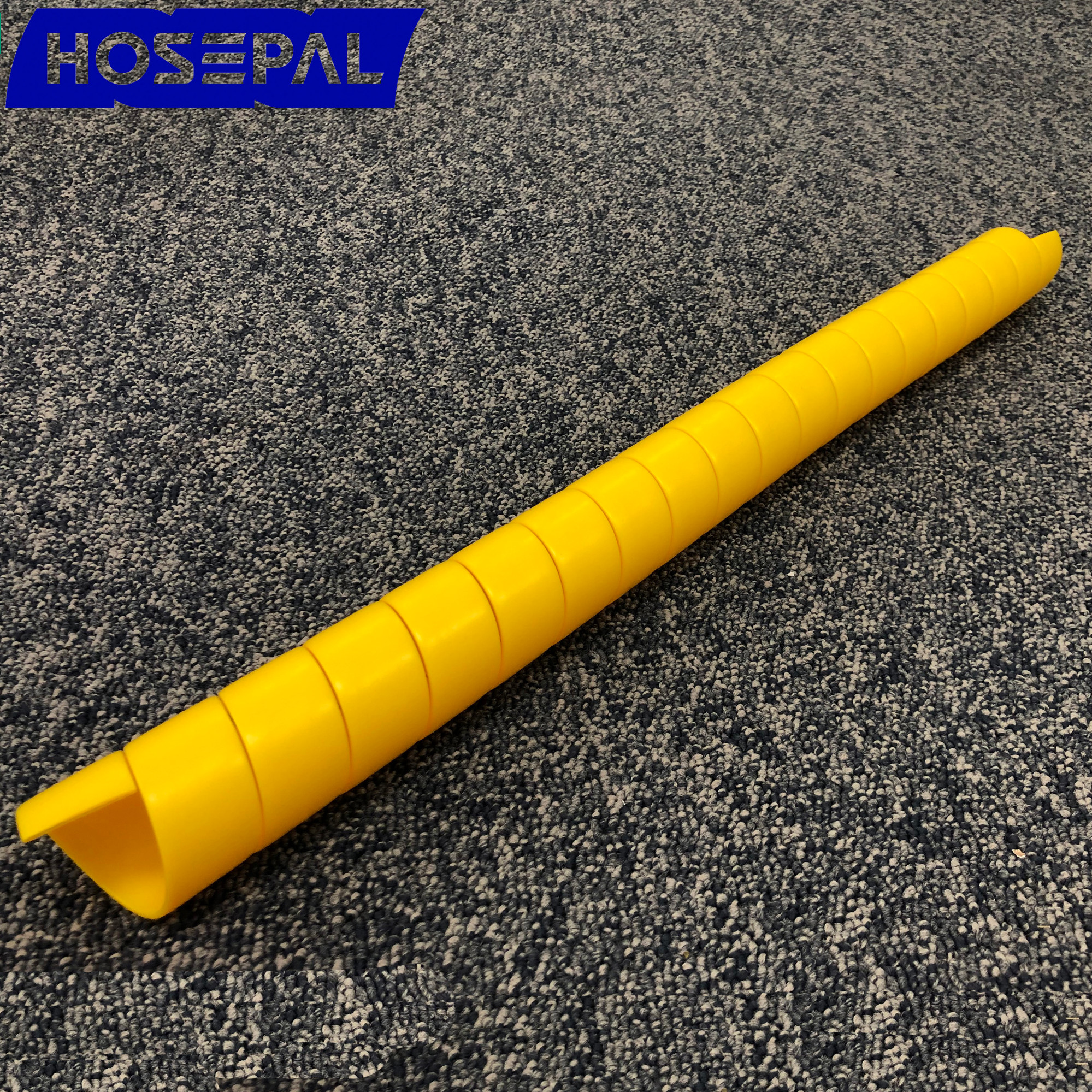

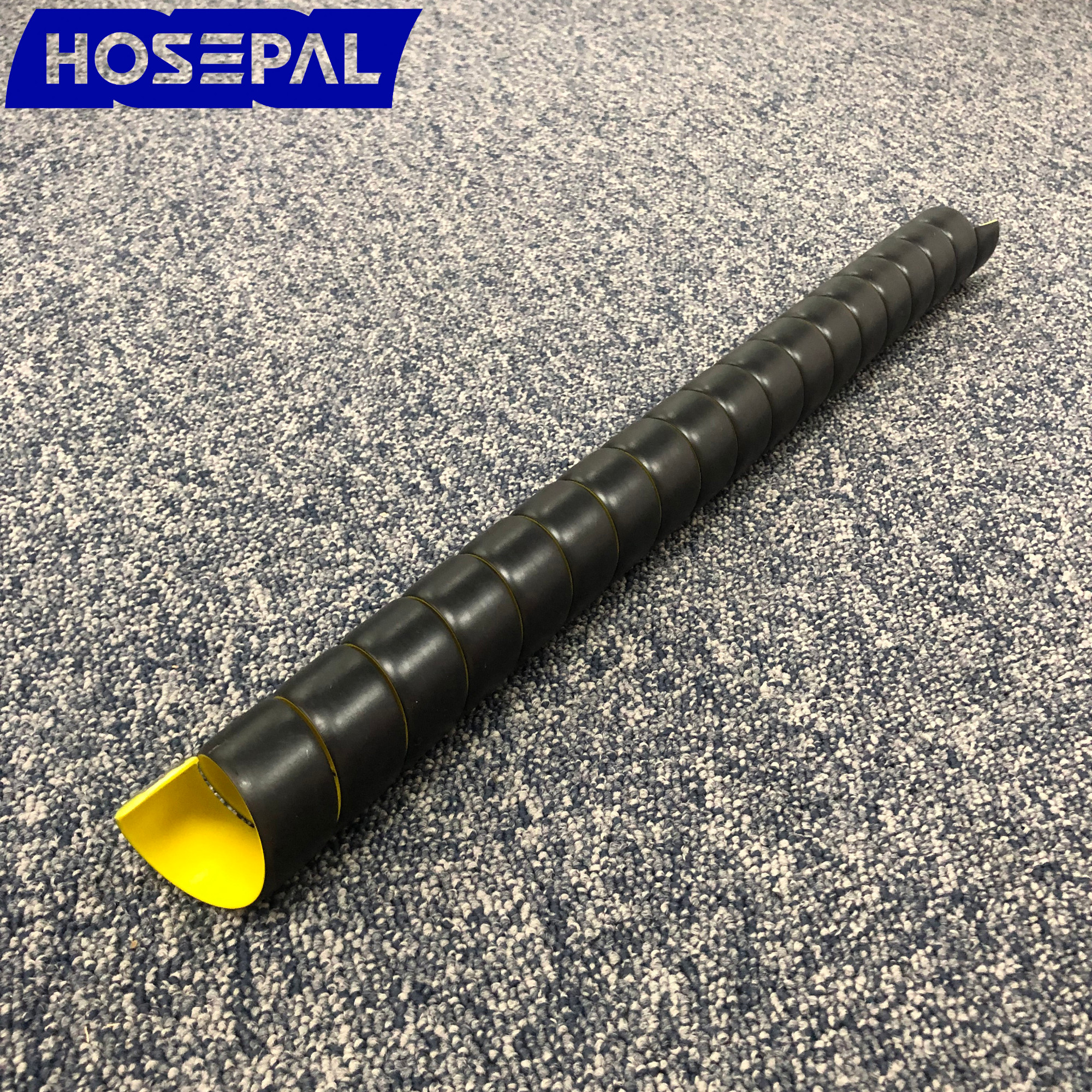

Spiral Guard Plus is a heavy duty spiral that provides safe and economical protection for hydraulic and pneumatic hoses. It is extruded using a specialized method that gives the final product enhanced strength and durability, in addition to the unique smooth-rounded edges which are non-abrasive and easy to work with.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Flat design of spiral provides solid protection

Made of Poly Propylene, Resistant to acids, oil and solvents,

Poly UV-tolerant, Halogen free, Reusable

Tolerates both heat and frost

Applications:

Harsh abrasive applications and rugged environments.

Specifications:

Temperature Range: -40°C-100°C

Item Number	Inner Diameter	Outside Diameter	Coil Lenth
HGSGP	mm	mm	m
HGSG12P	12	11-13	100
HGSG14P	14	13-15	100
HGSG16P	16	15-17	100
HGSG18P	18	17-19	50
HGSG20P	20	19-21	50
HGSG22P	22	21-23	50
HGSG25P	25	24-26	30
HGSG28P	28	27-29	30
HGSG30P	30	29-31	25
HGSG32P	32	31-33	25
HGSG35P	35	34-36	20
HGSG38P	38	37-39	20
HGSG40P	40	39-41	20
HGSG42P	42	41-43	20
HGSG45P	45	44-47	20
HGSG50P	50	48-52	20
