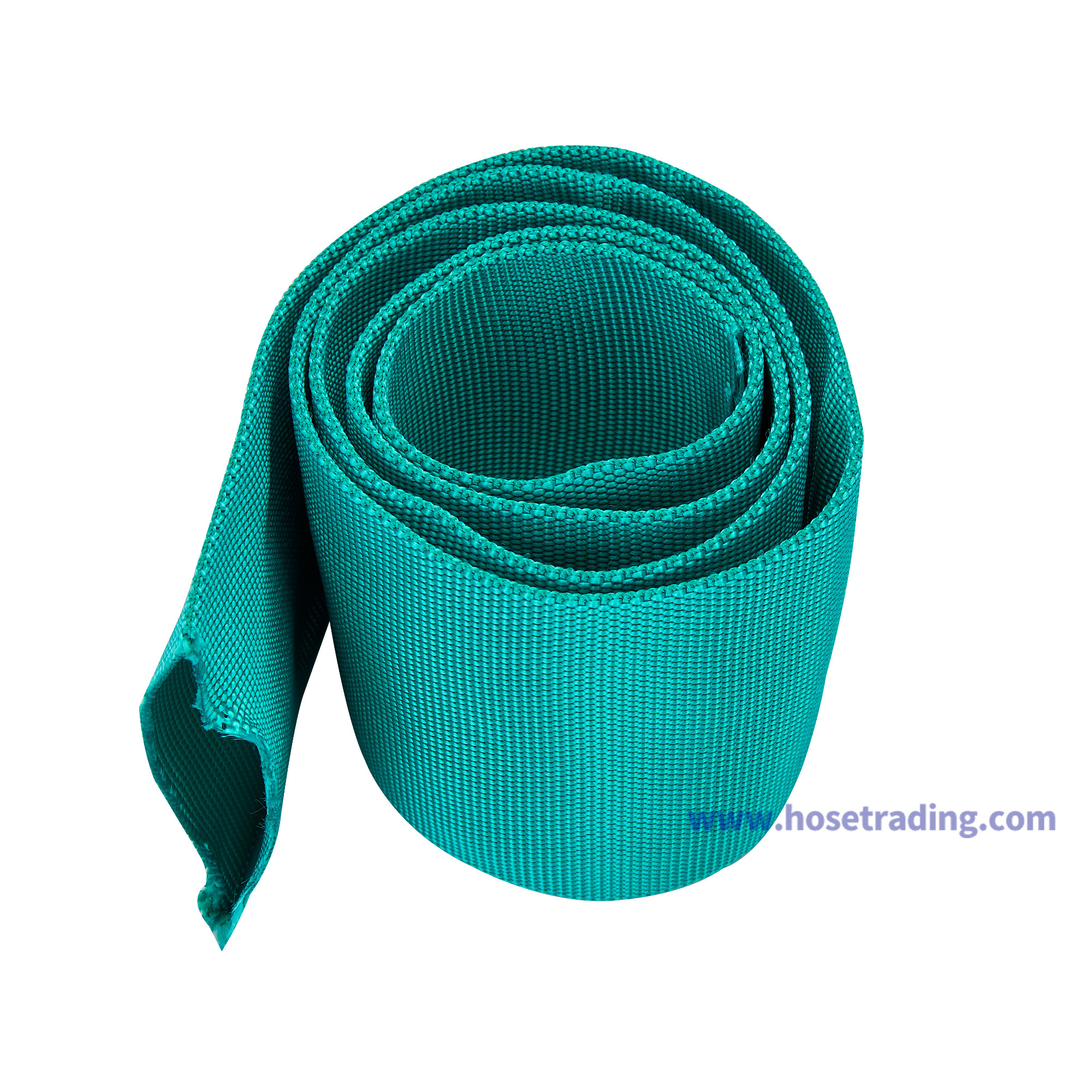

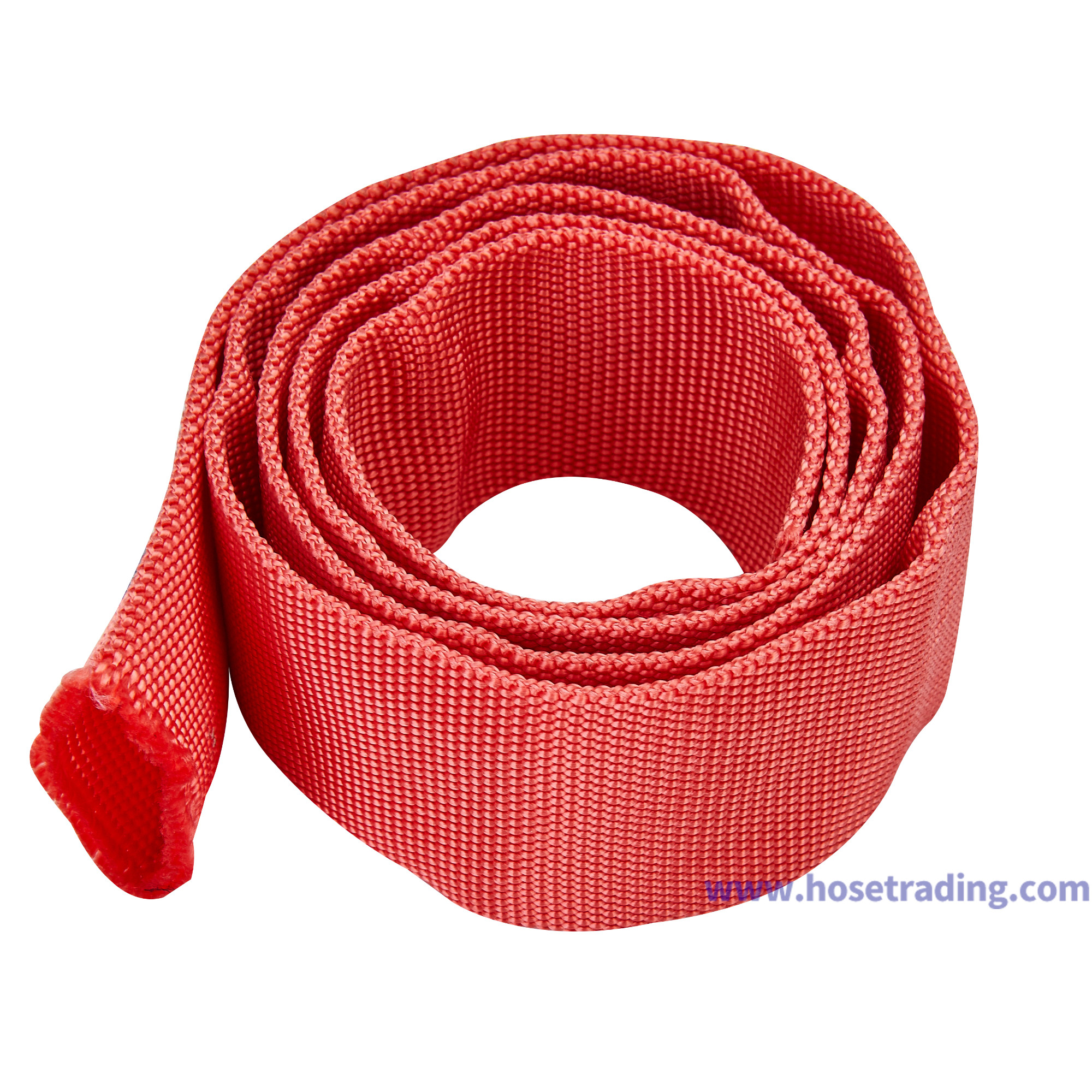

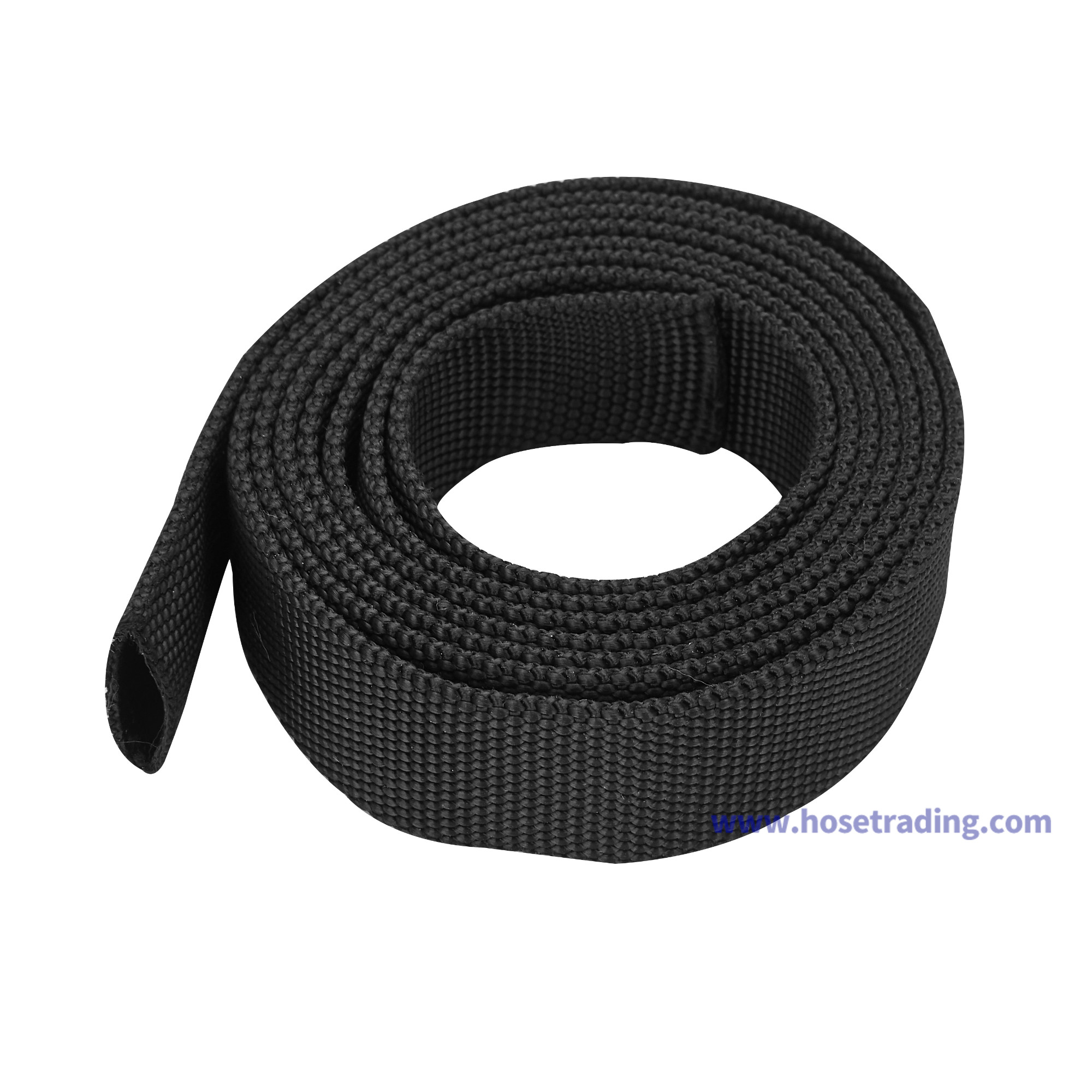

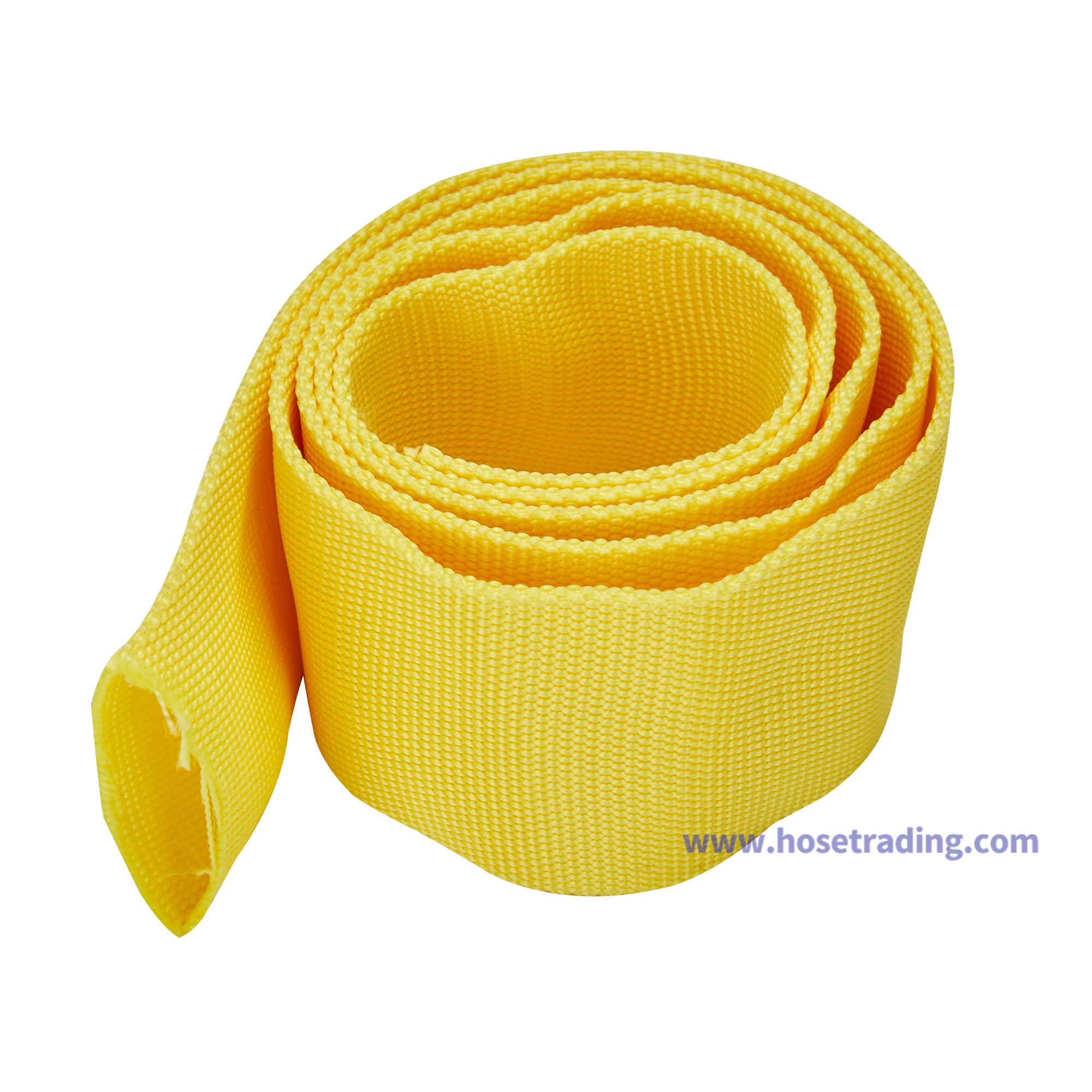

Sleeve MSHA

Product Descriptions

Sleeve MSHA is a flexible designed product in outperforming hose in abrasion resistance, protecting personnel from hose spray-out failures. And it’s MSHA approved for use in underground mines. It’s available in inside diameter from 10mm up to 61mm, but other sizes will be available upon request with a minimum order.

Markets:

Transportation

RV&Bus

Military

Construction

Agriculture

Grounds&Building Maintenance

Forestry

Railroad

Utility Equipment

Personal Lift Equipment

Machine Tool

Oil Field Service

Waste&Refuse

Material Handling

Marine

Paving&Road Maintenance

Ground Support Equipment

Industrial

Mining

Automotive

Features/Benefits:

Post assembly installation

Lightweight and highly flexible

Fast and easy installation

Tight weave pattern prevents the fabric ends from fraying out when cut

Applications:

Harsh abrasive applications with aggressive chemicals or rugged environments

Specifications:

Temperature Range: -50°C-150°C

Material: Polyester(PES)

Certifications:

MSHA certified for use in underground mines

RoHS Compliant

ISO6945 certified for abrasion resistance of outer cover

Item Number	Flat Width	Inner Diameter	Thickness of inner wall	Coil Length
HGSM	mm	mm	mm	m
HGSM020	20	10	1.0	50
HGSM025	25	14	1.0	50
HGSM030	30	17	1.0	50
HGSM035	35	20	1.0	50
HGSM040	40	23	1.0	50
HGSM045	45	26	1.0	50
HGSM050	50	29	1.0	50
HGSM060	60	36	1.0	50
HGSM070	70	42	1.0	50
HGSM080	80	48	1.0	50
HGSM090	90	55	1.0	50
HGSM100	100	61	1.0	50
