Application:
Suction hose for vacuum pressure.
Water supply and drain of various equipment.
Delivery of machine tool.
Suction and discharge for sand,cement etc in construction,civil engineering agricultural and ships.
Characteristic:

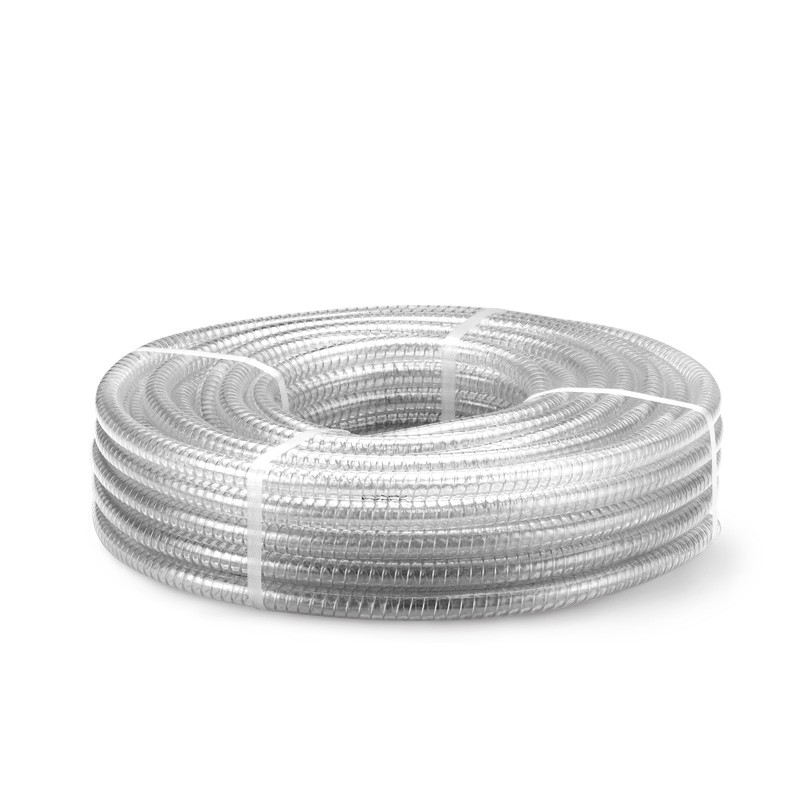

Sprail steel wirereinforced incorporated with in the wall of flexible PVCtubing.
Excellent kink and crush resistance.
Glass-like clarity with mirror-smooth surface provide outstanding visual flow characteristics.
Light weight yet tough and abrasion resistant.
Temperature:-5℃ to + 65℃
|
ITEM NO |
Specification |
I.DXO.D(mm) |
Length(mm) |
W.P(Bar) |
B.P(Bar) |
Weight(Kg/Roll) |
Measure DXH(mm*mm) |
|
SWHC15 |
5/8 |
15X19.6 |
100 |
6 |
18 |
20 |
600X140 |
|
SWHC19 |
3/4 |
19X24.6 |
50 |
6 |
18 |
15 |
660X200 |
|
SWHC25 |
1 |
25X30.0 |
50 |
6 |
18 |
18 |
650X210 |
|
SWHC32 |
1-1/4 |
32X38.0 |
50 |
5 |
16 |
26.5 |
750X230 |
|
SWHC38 |
1-1/2 |
38X45.2 |
50 |
5 |
16 |
33 |
850X310 |
|
SWHC50 |
2 |
50X56.0 |
50 |
5 |
16 |
40 |
1000X310 |
|
SWHC64 |
2-1/2 |
64X71.2 |
50 |
4 |
14 |
60 |
1050X310 |
|
SWHC76 |
3 |
76X83.2 |
40 |
4 |
14 |
60 |
1150X350 |
|
SWHC102 |
4 |
102X111.4 |
40 |
4 |
14 |
108 |
1180X430 |
