Application:
Suction and discharge for sand,gravel,cement and iron & etc.
Construction,civil engineering,agricultural and ships.
Transfer of powder and granule.
Suction and press-transfer of various grains.
Characteristic:

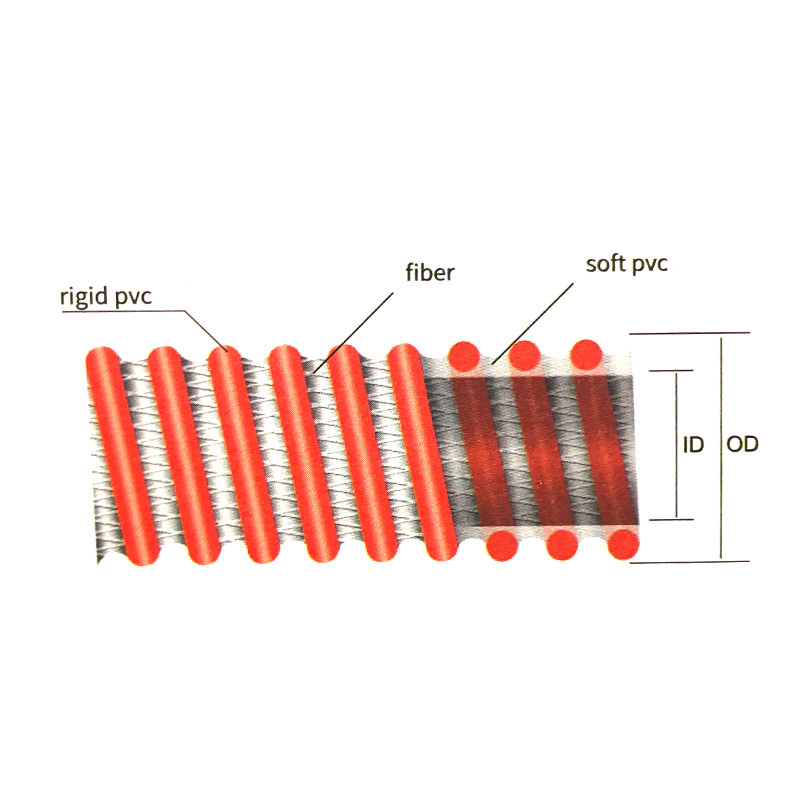

Smooth inside and out side non-restricting tube.
The rigid PVC sprial resists crushing impact.
High abrasion resistance and easy to transfer powder.
ITEM NO
Specification
I.DXO.D(mm)
Length(mm)
W.P(Bar)
B.P(Bar)
Weight(Kg/Roll)
Measure DXH(mm*mm)
FSH38
1-1/2
38.5X43
30
6
26
10
560X150
FSH51
2
52X57.2
30
6
24
12
600X230
FSH64
2-1/2
65.5X71.0
30
5
20
16
620X280
FSH76
3
77.5X83.5
30
5
26
18
750X280
FSH102
4
103X108.5
30
5
24
28
840X400
